Description

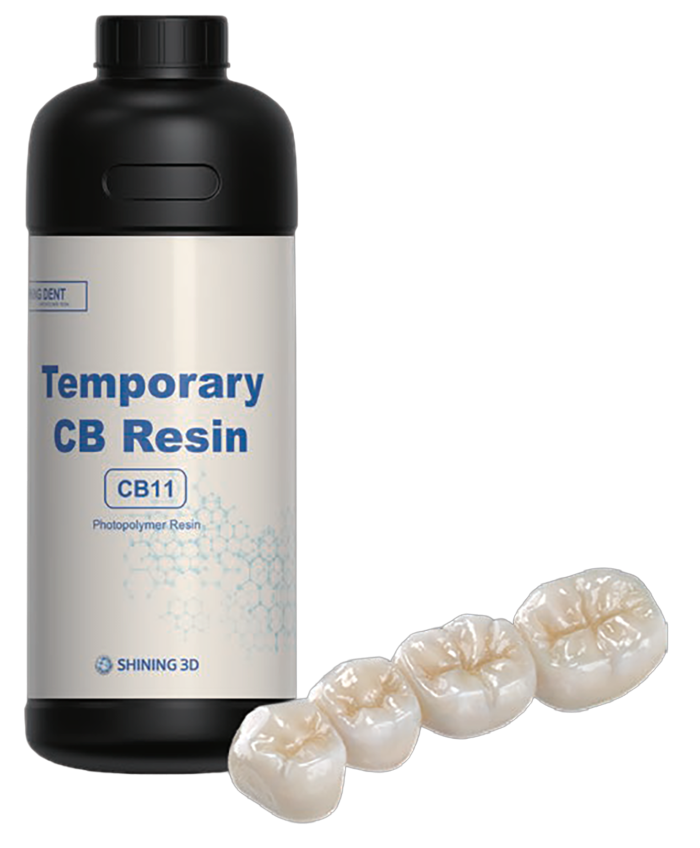

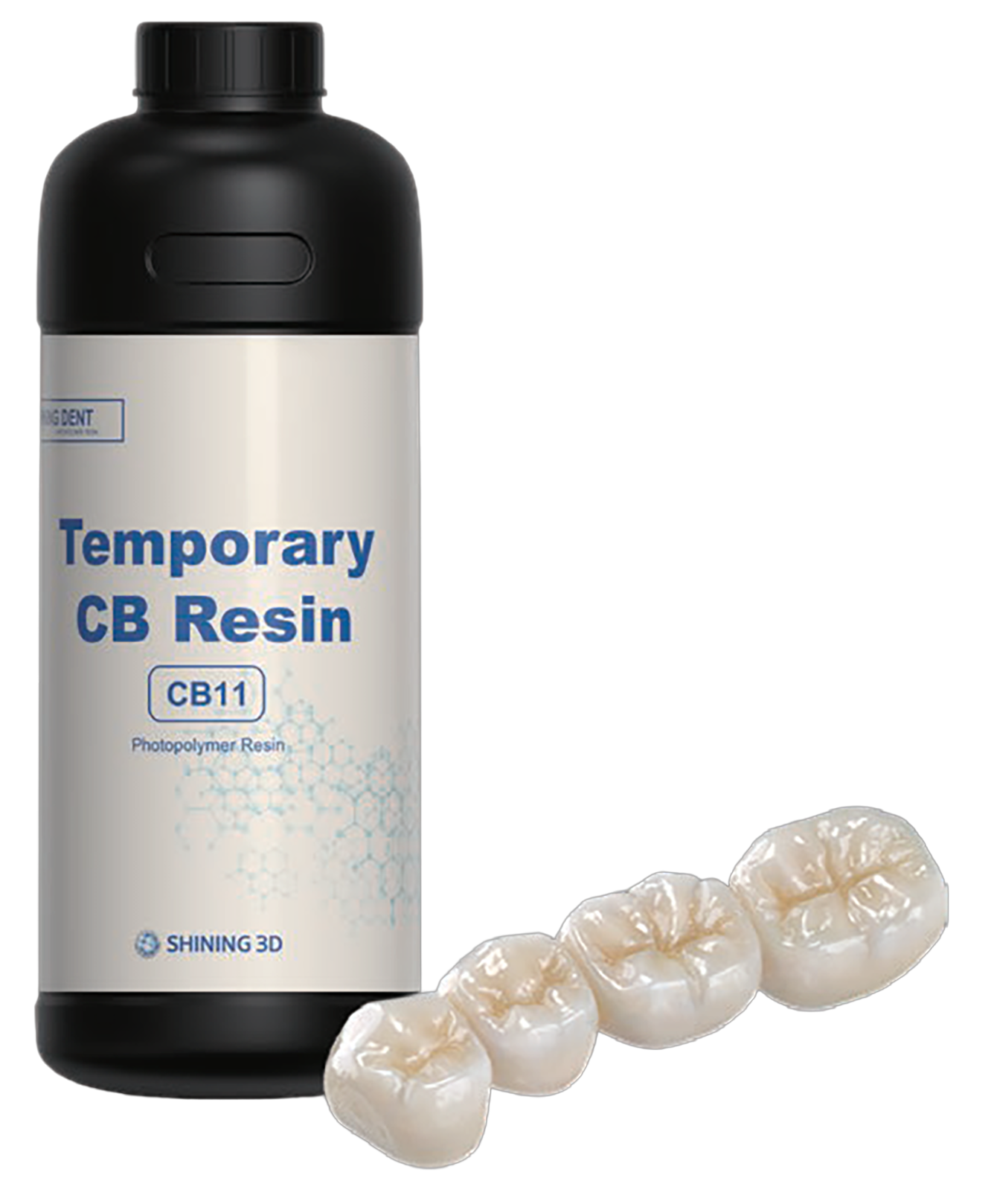

CB11 Temporary Crownย  and Bridge Resin

CB11 is an ideal choice for printing crown and bridge with perfect performance in colors, morphology, occlusion, etc. This material undergoes MMA&THF-MA free which is even safer in use of sensitive users. This material has features including high toughness, high pressure resistance, high flexural strength with low water absorption after testing in oral devices real anti-aging performance. The flexural strength can be maintained above 115MPa after a long-accelerated aging test. The low risk of CB11 fracture after wearing, the safer when patientโ€™s chewing.
CB11 is recommended to place at room temperature 23ยฑ2ยฐC with humidity <70%. The surface of the printed CB11 is smooth and easy to polish, with high gloss after polishing.

Multi-color choice A1/A2/A3/A3.5/B1/B2/B3 (Vita A-D Shade Guide)
Comprehensive biocompatibility
High pressure-resistance, high flexural strength

Physical Properties

Color A1 / A2 / A3 / A3.5 / B1 / B2 / B3
Viscosity 1320
Wavelength 405nm

Mechanical Properties – Post Cured Parts

Property Value Test Method
Flexural Strength | Mpa 118 ISO 10477
Flexural Strength after two months 116 ASTM F1980-2021
Chewing Simulation Test 1.2 million chewing cycles Chewing Simulation Methods
Color Stability | dE โ‰ค1 (CIELAB, dE) ISO 10477
Color Stability | dE No perceptible color change ISO 22112
Resistance to blanching, distortion and crazing No perceptible failing ISO 22112
Elongation at break 6.59% ISO 527-1
Water Sorption|ฮผg/mm3 โ‰ค 35 ISO 10477
Solubility|ฮผg/mm3 โ‰ค 5.5 ISO 10477
Biocompatible Comply ISO 10993-1
Post Processing Value
Cleaning time with 95% ethanol Manual cleaning 20 secs
Recommended curing time Fabcure 1/1S 10 Minย  Fabcure 2 5 Min
