Description

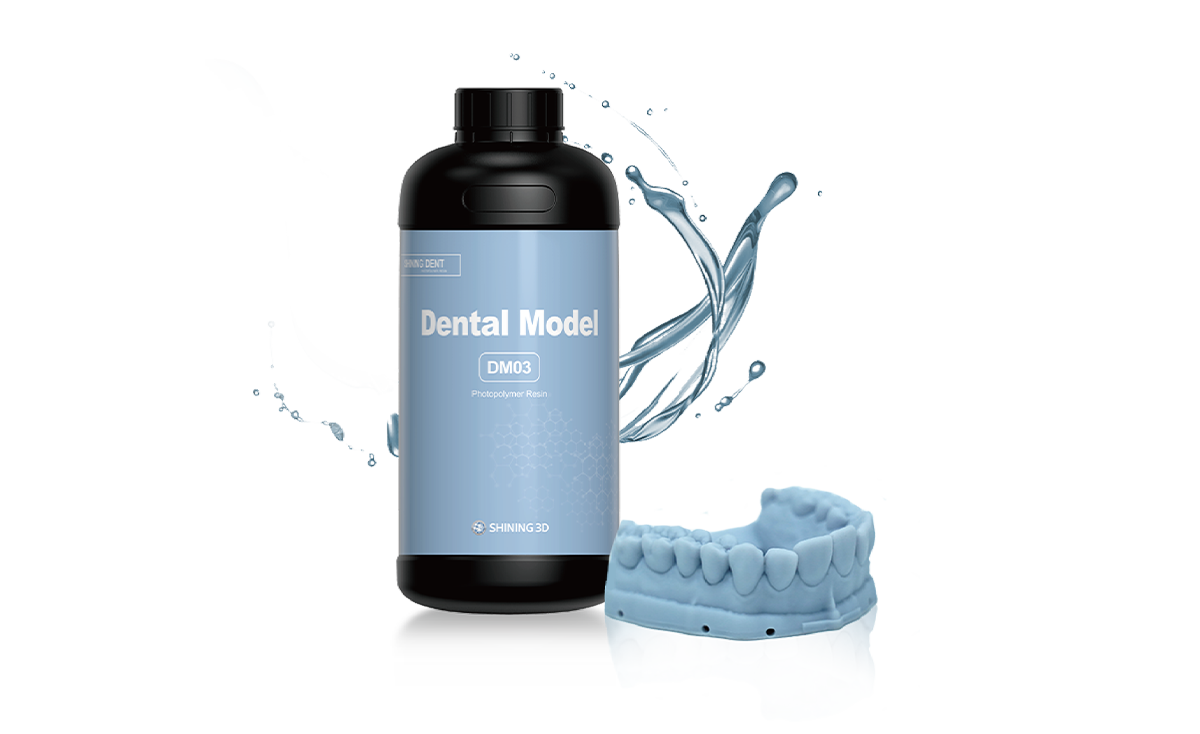

Dental model DM03 is the ideal choice for printing implant models and separated models for C&B applications. This material has features including high toughness, high pressure resistance, etc. This allows the best experience when using for implant models.

The hardness and mechanical properties of cured resin allows DM03 to resist abrasion and tearing force during seating and finishing implant cases, ensuring perfect cases every time. The grey colour allows the perfect performance in model details.

DM03 is recommended to place at room temperature 23±2℃ with humidity <70%
Accuracy of printed curing model
Within 10 days >90%
Within 15 days >85%

Physical Properties

Color Grey
Viscosity @25 Celsius | cps 870
Wavelength 405nm

Mechanical Properties – Post Cured Parts

Property Value Test Method
Hardness | Shore D 77 ISO 868
Tensile Modulus | MPs 1021 ISO 527
Tensile Strength | MPa 27 ISO 527
Elongation at break | % 35 ISO 527
Flexural Modulus | MPa 1429 ISO 178
Flexural Strength | MPa 54 ISO 178
Notch Izod j/m 10.7 ISO 180



Post Processing Value
Cleaning time with 95% ethanol Ultrasonic bath: 30 + 60 secs
Recommended curing time Fabcure 1: 10mins, Fabcure 2: 7 mins
