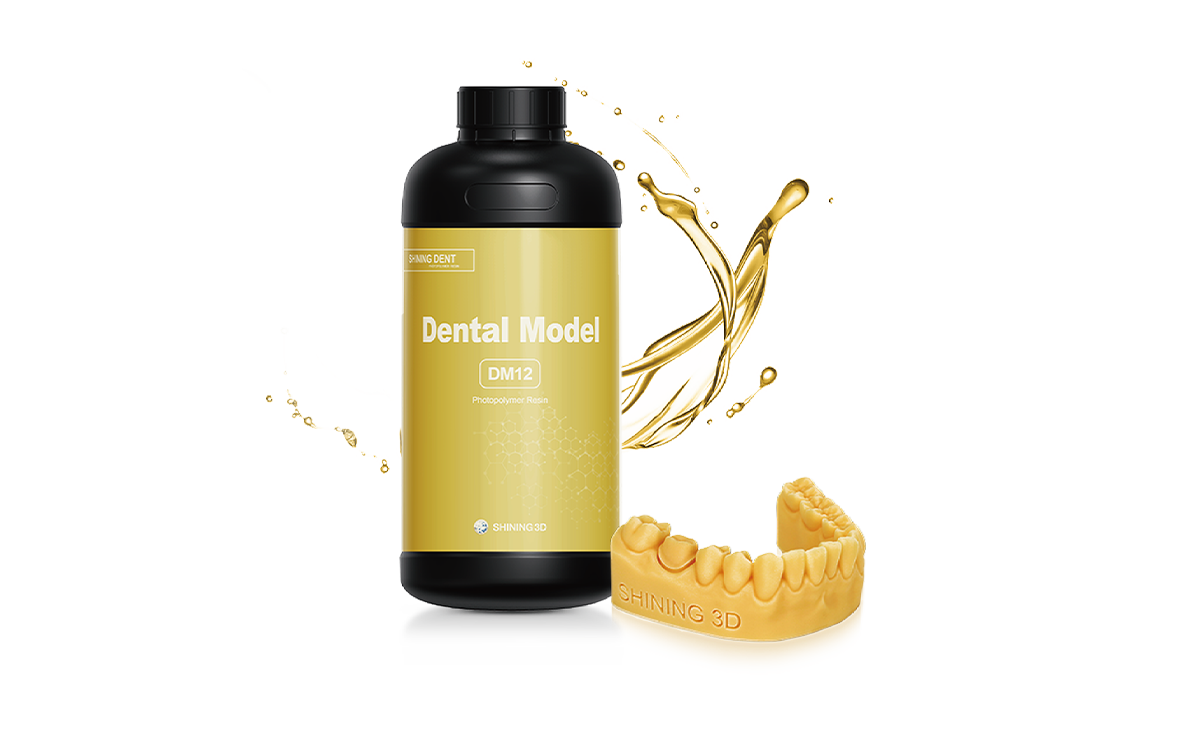

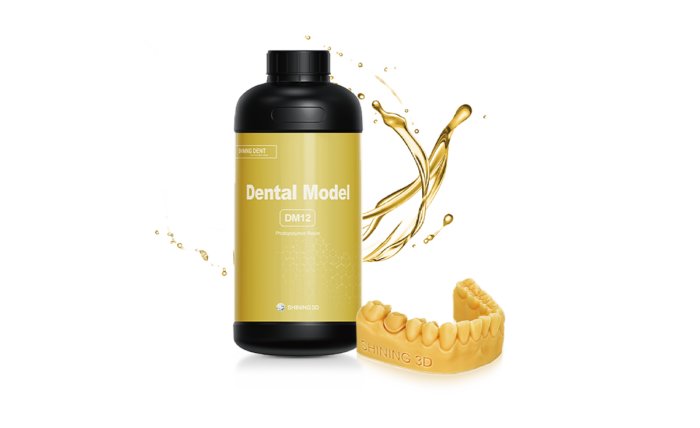

DM12 IMPLANT MODEL (GELLER MODEL)
Dental Model DM12 is the ideal choice for printing separated models for crown and bridge application. DM12 optimizes model precision through its lower elasticity and higher flexural modulus compared to the previous DM11. The hardness and mechanical properties of the cured resin allows the DM12 to resist abrasion during seating and finishing for crown and bridge cases, ensuring a perfect fit every time. The yellow color offers maximum detection of margin lines and adjacent contours, and cleanup is easy thanks to the low viscosity of the resin.
Low viscosity, high stability

Physical Properties – Liquid Status

Color Yellow
Viscosity cps 255
Wavelength 405nm

Mechanical Properties – Post Cured Parts

Property Value Test Method
Hardness Shore D 81 ISO 868
Tensile Modulus MPa 1404 ISO 527
Tensile Strength MPa 29 ISO 527
Elongation at Break % 11 ISO 527
Flexural Modulus MPa 1537 ISO 178
Flexural Strength MPa 52 ISO 178
Post Processing Value
Cleaning time with 95% ethanol Manual cleaning: 30 + 30 secs
Recommended curing time Fabcure 1: 10 mins, Fabcure 2: 7 mins
