$120.00

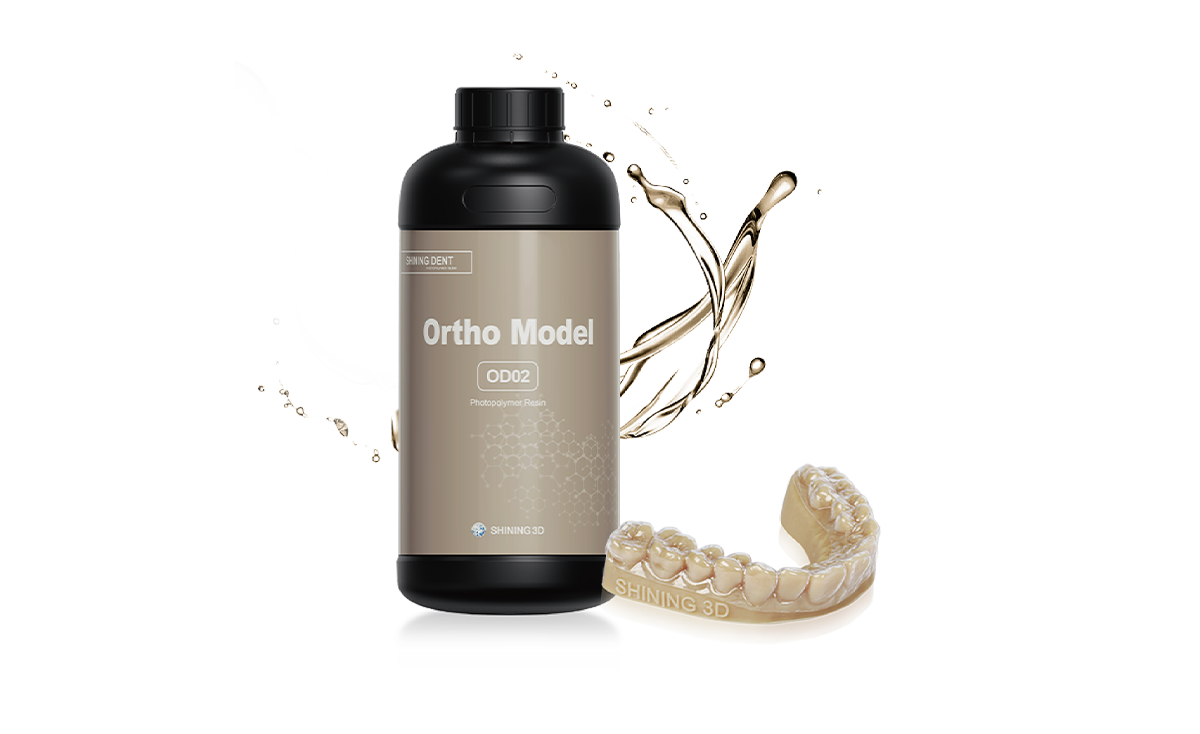

OD02 Ortho Model 3D Printer Resin
Ortho Model OD02 is an excellent choice for printing models for the fabrication of aligners and orthodontic applications. The high heat resistance and hardness of OD02 allows for the cured models to withstand abrasion and maintain accuracy over multiple uses.
–>High heat resistance, hardness
OD02 Ortho Model 3D Printer Resin
Ortho Model OD02 is an excellent choice for printing models for the fabrication of aligners and orthodontic applications. The high heat resistance and hardness of OD02 allows for the cured models to withstand abrasion and maintain accuracy over multiple uses.
–>High heat resistance, hardness
| Color | Yellowish-Brown |
| Viscosity cps | 322 |
| Wavelength | 405nm |
| Property | Value | Test Method |
| Hardness | Shore D | 86 | ISO 868 |
| Tensile Modulus | MPa | 2477 | ISO 527 |
| Tensile Strength | MPa | 55 | ISO 527 |
| Elongation at break | % | 3.6 | ISO 527 |
| Flexural Modulus | MPa | 3217 | ISO 178 |
| Flexural Strength | MPa | 108 | ISO 178 |
| Post Processing | Value |
| Cleaning time with 95% ethanol | Ultrasonic bath 60 + 10 secs |
| Recommended curing time | Fabcure 2: 20 mins @ 60C |
| Weight | 3 lbs |
|---|---|
| Dimensions | 10 × 5 × 5 in |
