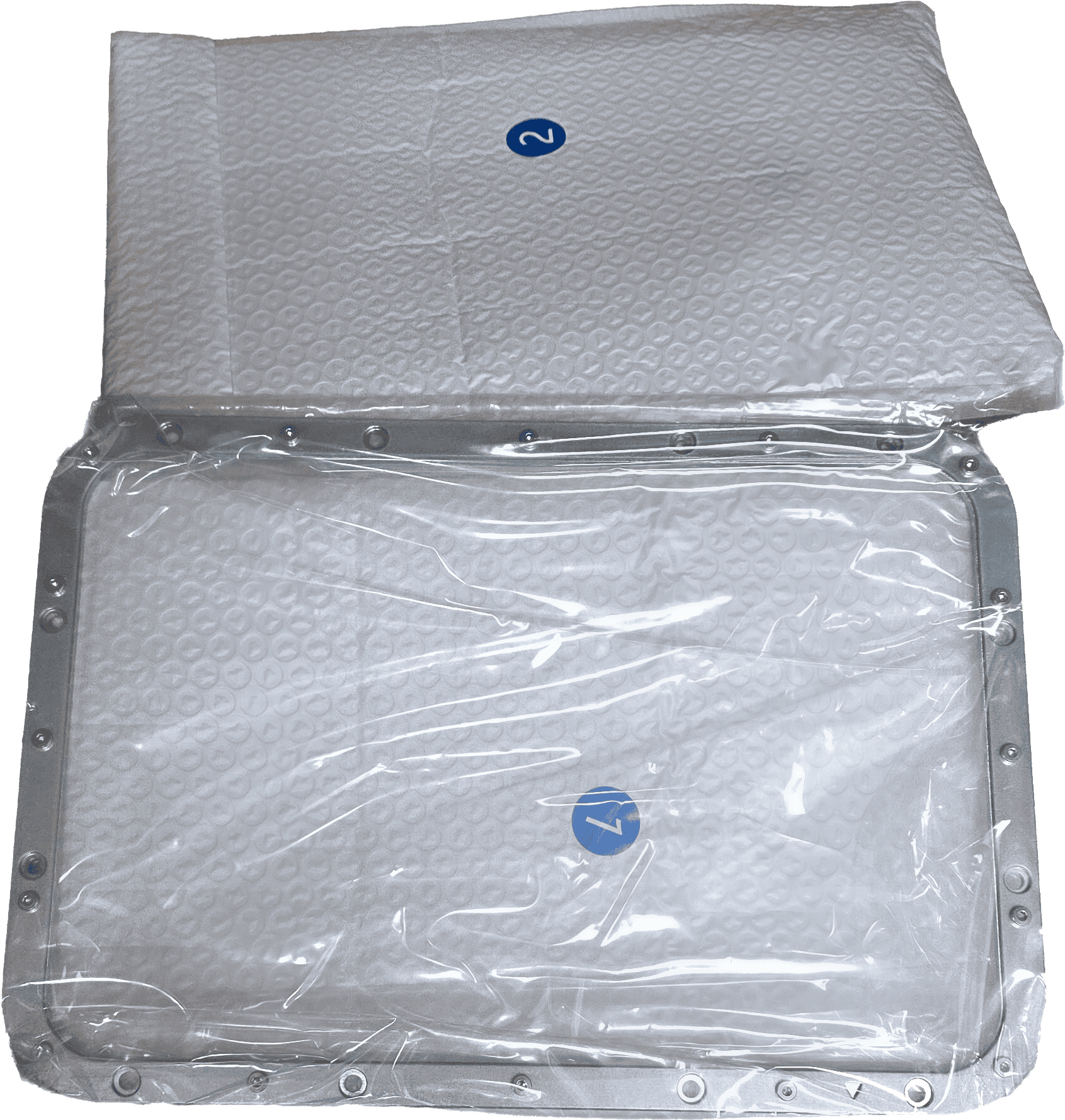

Shining 3D Replacement Film Kit for L4D-L4K Standard Resin Tank (V4)

Description

Replace the film on your AccuFab-L4D / L4K standard (V4) resin tank instead of replacing the entire tank.

This Shining 3D OEM kit uses FEP film pre-mounted on the metal frame. High light transmittance supports even 405 nm curing on the 4K LCD. Fresh film restores peel force, cuts failed layers from haze or wrinkles, and keeps resin off the screen.

Shining 3D recommends a film change on the standard L4D/L4K tank at about 30,000 layers, or sooner if the film is scratched, cloudy, or leaking.

Compatible with

• AccuFab-L4D standard / V4 resin tank
• AccuFab-L4K standard / V4 resin tank
• Tank capacity ~625–1100 ml

Not compatible with

• AccuFab-CEL standard tank (that uses a different ACF kit, P00034321)
• AccuFab-CEL HyperClear tank
• Small resin tank for CEL / L4D / L4K
• AccuFab-D1s / F1 tanks

Why replace the film

• Cloudy or wrinkled film causes incomplete cure and failed prints
• Damaged film can leak resin onto the LCD
• A film kit is a fraction of the cost of a new V4 tank
• Fresh film restores accuracy on models, surgical guides, trays, and splints

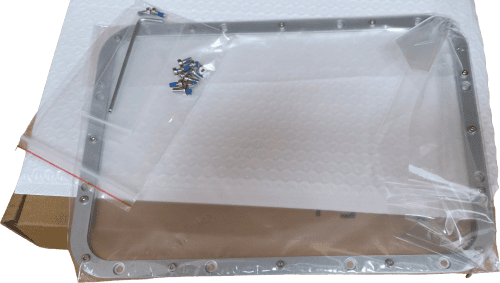

What’s included

• FEP film pre-mounted on the metal frame
• Spare screws
• Finger gloves
• Cleaning / microfiber cloth

Reuse the existing V4 tank body. Seat the new assembly, start every screw by hand, then tighten in a circle so tension stays even.

Need a walkthrough? Watch our AccuFab L4D & CEL tank film replacement guide or call Sodium Dental.
