The Ceramix Nano is Shining 3D’s all-in-one chairside crown printer — a 4.6 lb micro-factory that prints and cures permanent restorations in under 10 minutes, right at the chair. No lab. No temporary. No follow-up appointment. FDA Class II 510(k) cleared. Reimbursable under CDT D2740 at ~$1,168 per crown. Pays for itself in under 6 cases. Available in 5 shades with more coming.
Ceramix Nano — All-in-One Chairside 3D Printer
$5,999.00
Description

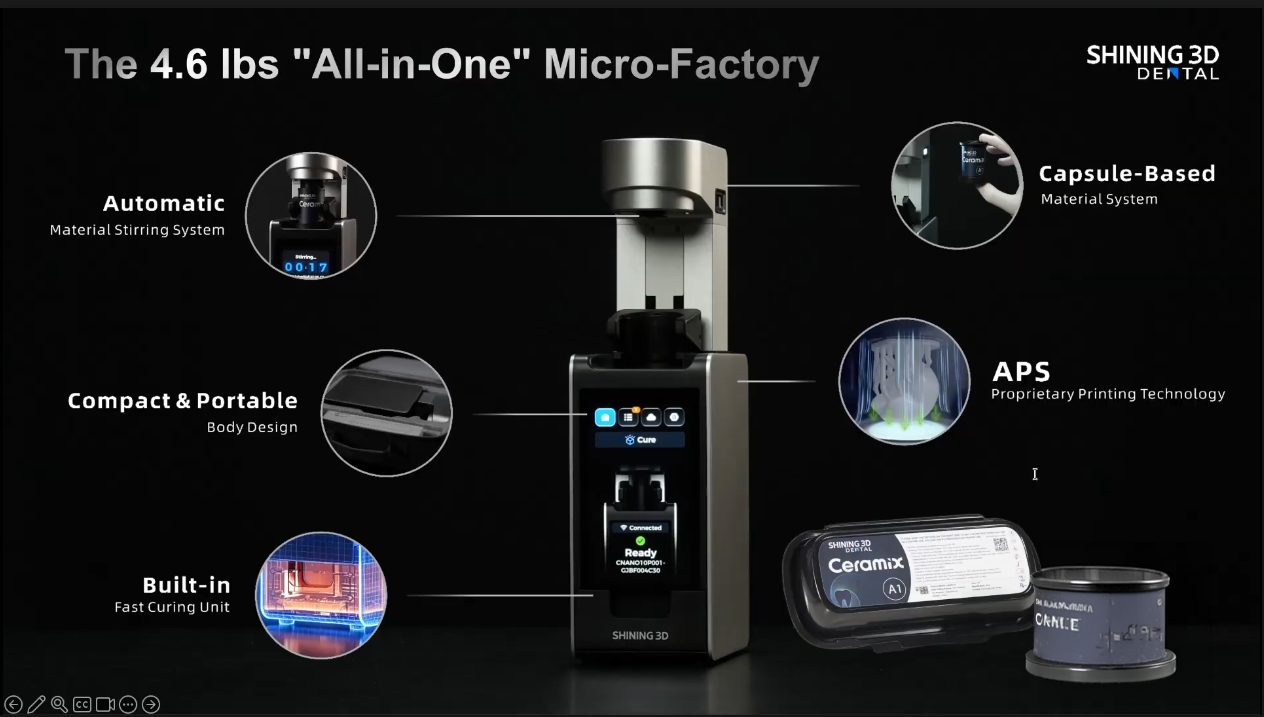

The 4.6 lb “All-in-One” Micro-Factory

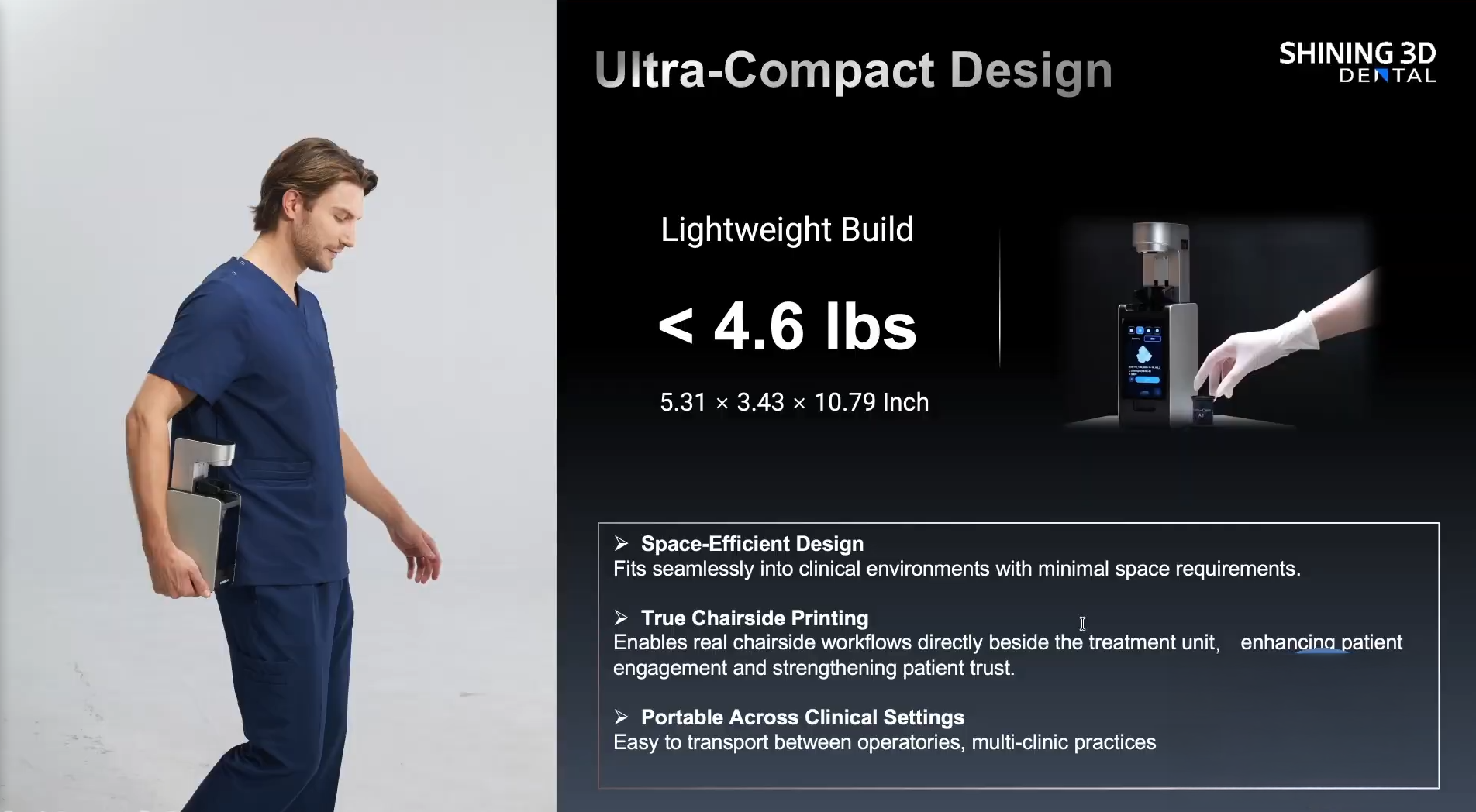

The Ceramix Nano is the world’s most compact capsule-based chairside 3D printer. At just 5.31″ × 3.43″ × 10.79″ and under 4.6 lbs, it sits on any operatory counter
top, moves between rooms in seconds, and is portable enough to take with you to any clinical setting. One device. One visit. Final restoration delivered before the patient gets up from the chair.

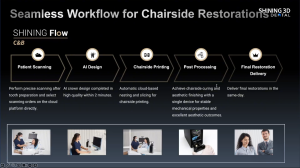

How It Works — The Shining Flow C&B Workflow
The Ceramix Nano operates within the Shining 3D Dental Cloud ecosystem in five seamless steps:

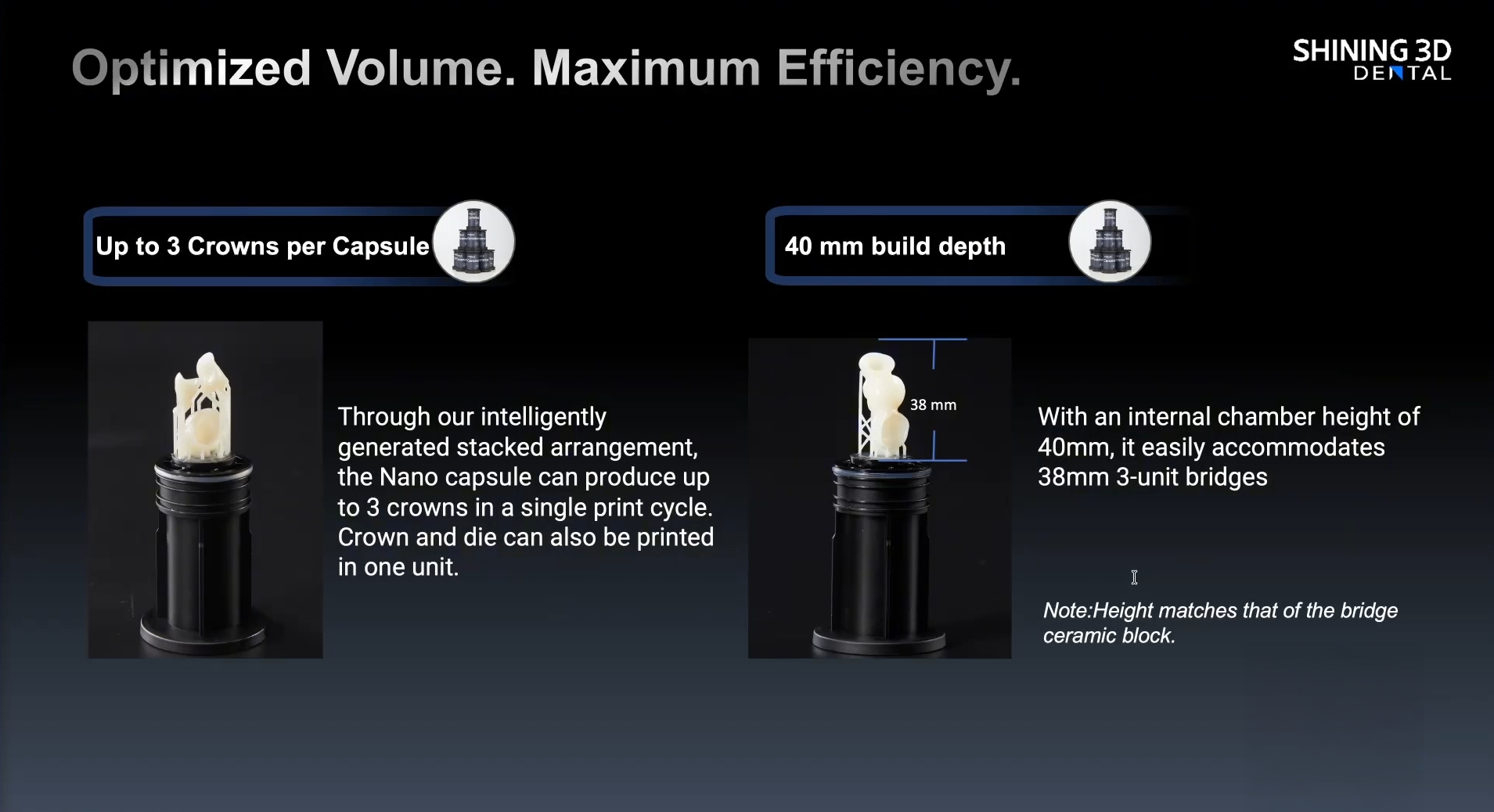

Capsule System — Up to 3 Crowns Per Capsule
The Ceramix Nano uses a closed capsule-based material system — no open resin handling, no drips, no chemical smell. The intelligently generated stacked arrangement allows the Nano capsule to produce up to 3 crowns in a single print cycle. Crown and die can also be printed together in one unit. With a 40mm internal chamber height, the system easily accommodates 38mm 3-unit bridges.

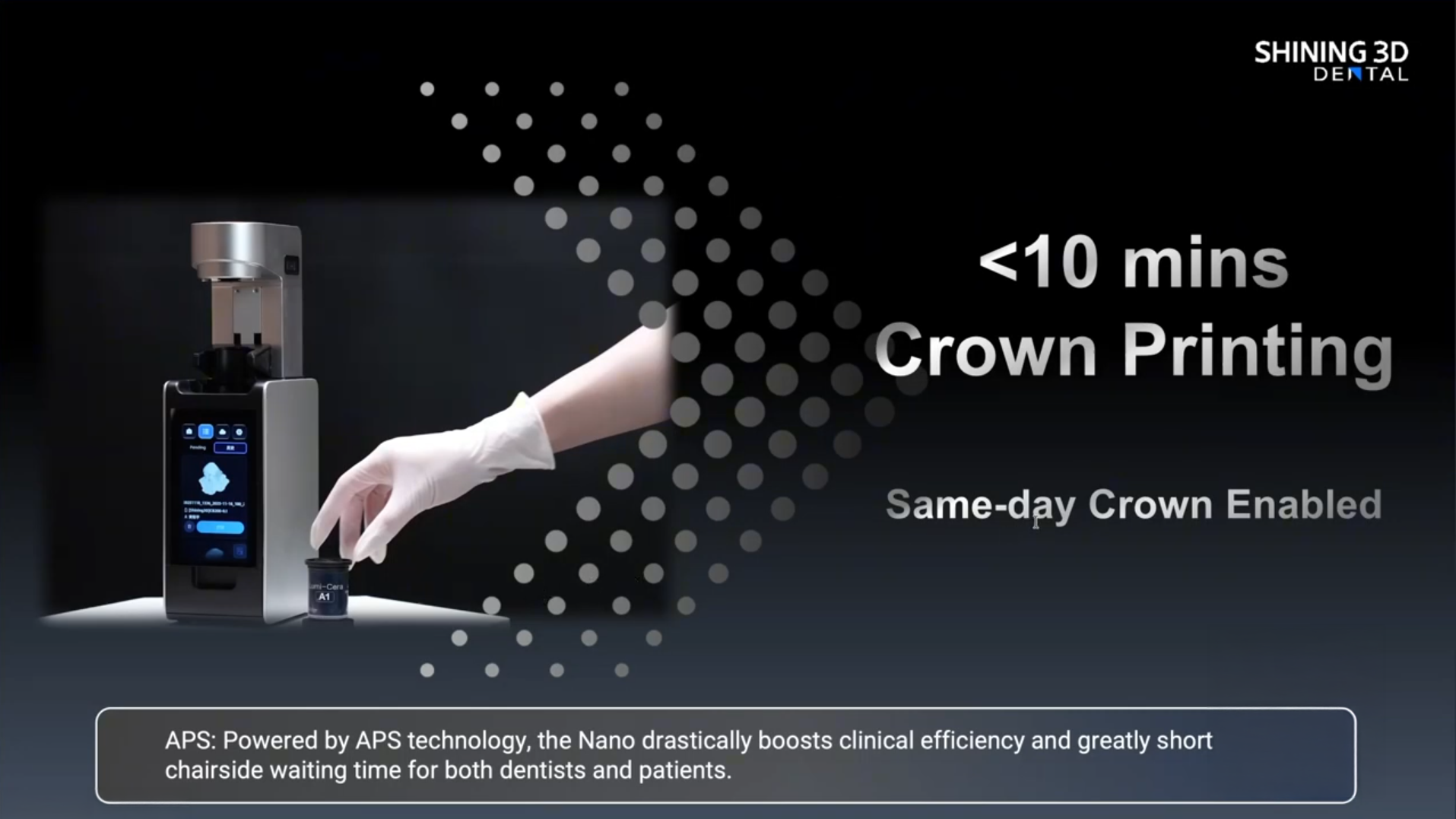

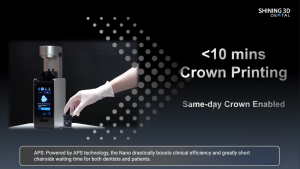

APS Proprietary Printing Technology
Powered by Shining 3D’s APS (Advanced Printing System) technology, the Ceramix Nano drastically boosts clinical efficiency and greatly reduces chairside waiting time. Under 10 minutes per crown. Same-day crown enabled.

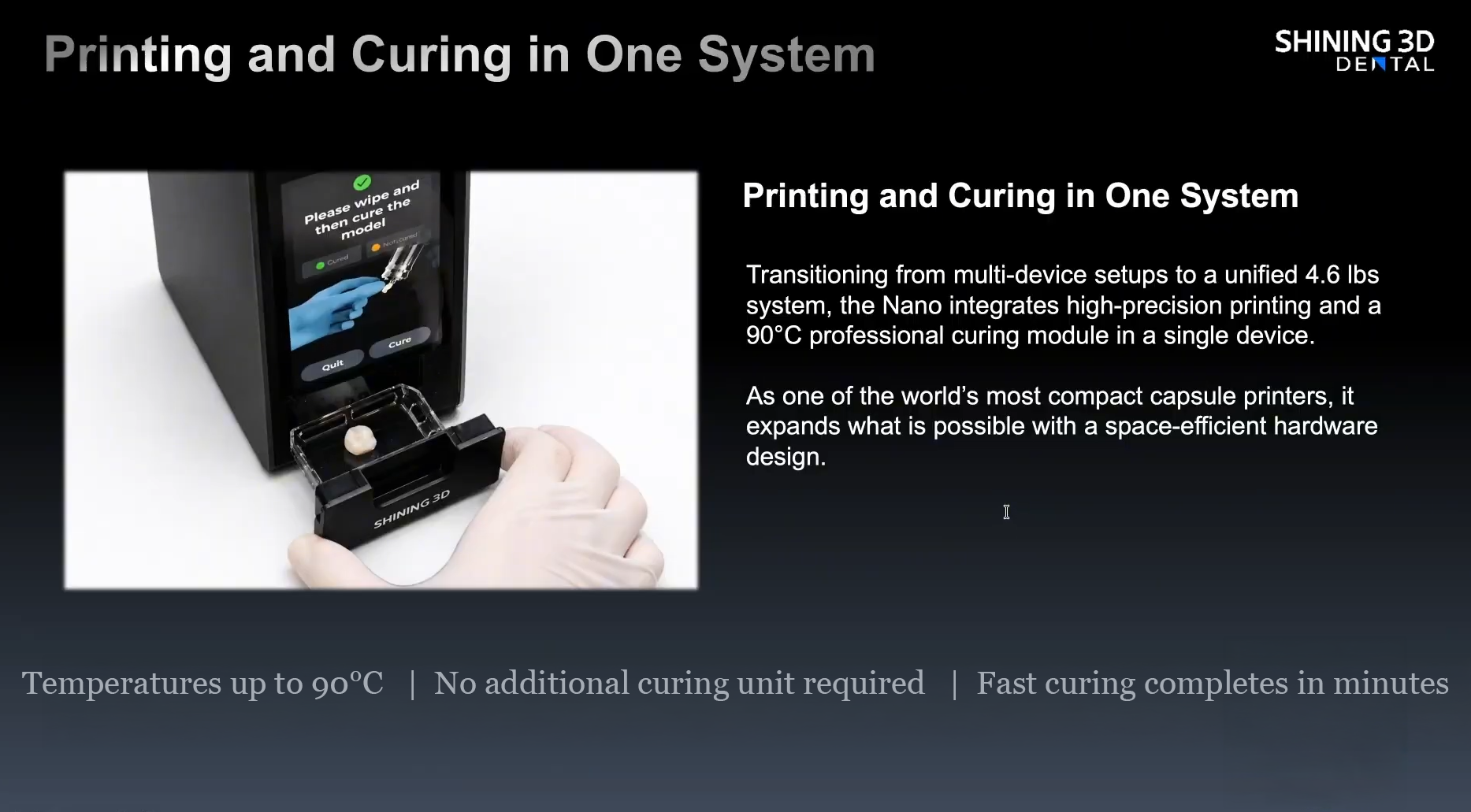

Printing and Curing in One System

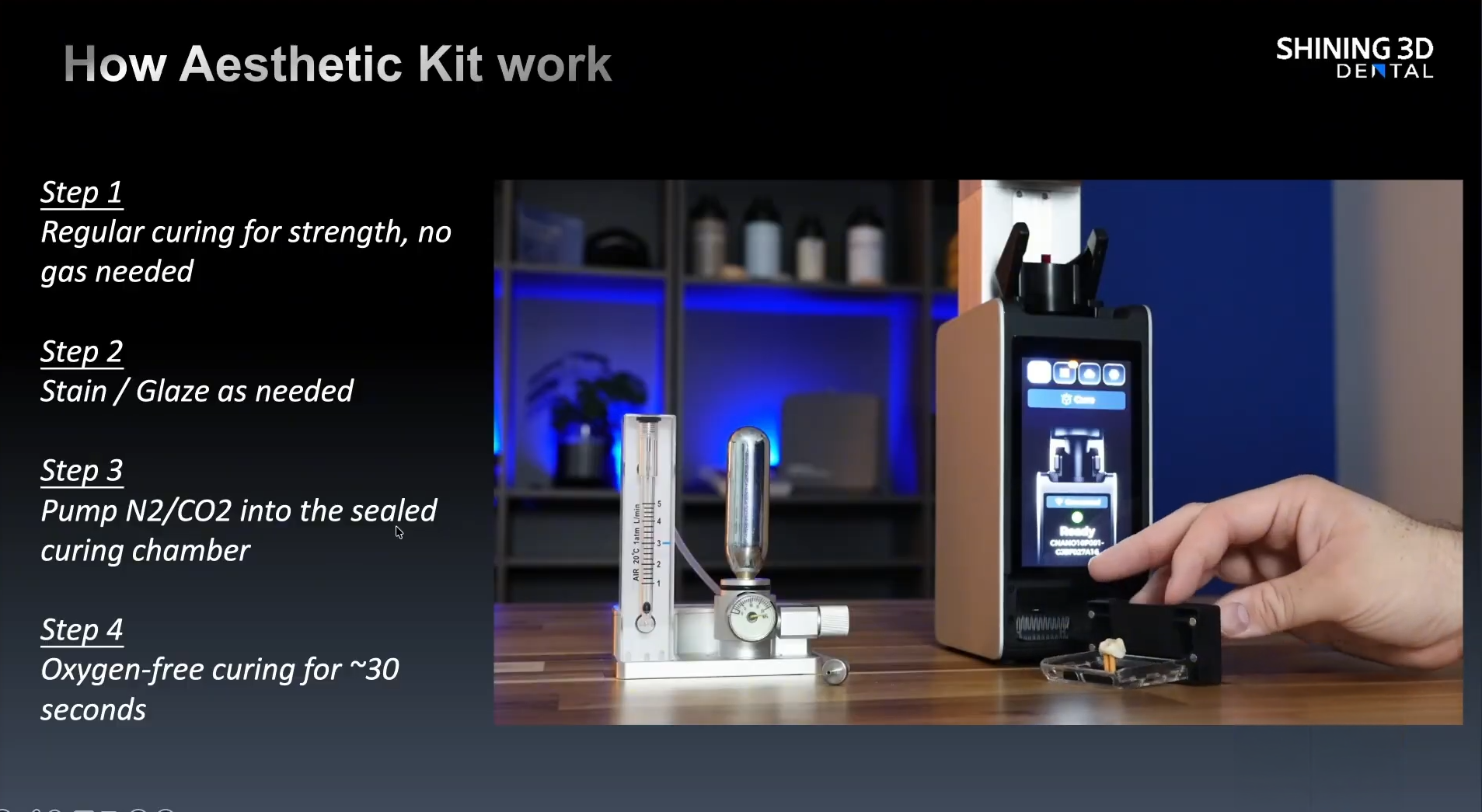

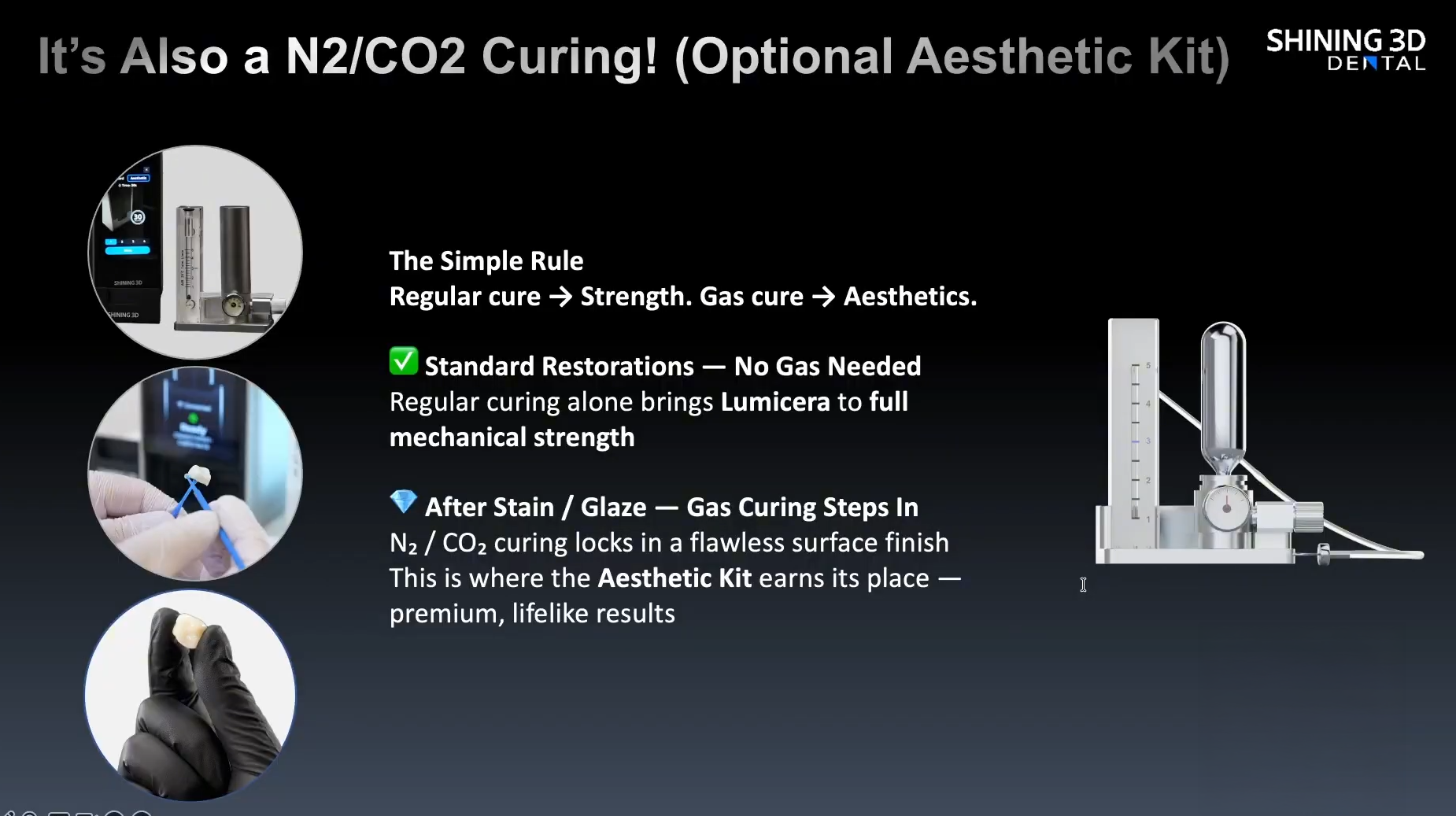

The Ceramix Nano integrates high-precision printing and a 90°C professional curing module in a single 4.6 lb device. No separate curing unit required for standard restorations. The simple rule: Regular cure → Strength. Gas cure → Aesthetics.
- Standard restorations — regular curing alone brings Lumicera to full mechanical strength. No gas needed.
- After stain/glaze finishing — N2/CO2 gas curing locks in a flawless surface finish for premium, lifelike results (requires optional Aesthetic Kit)

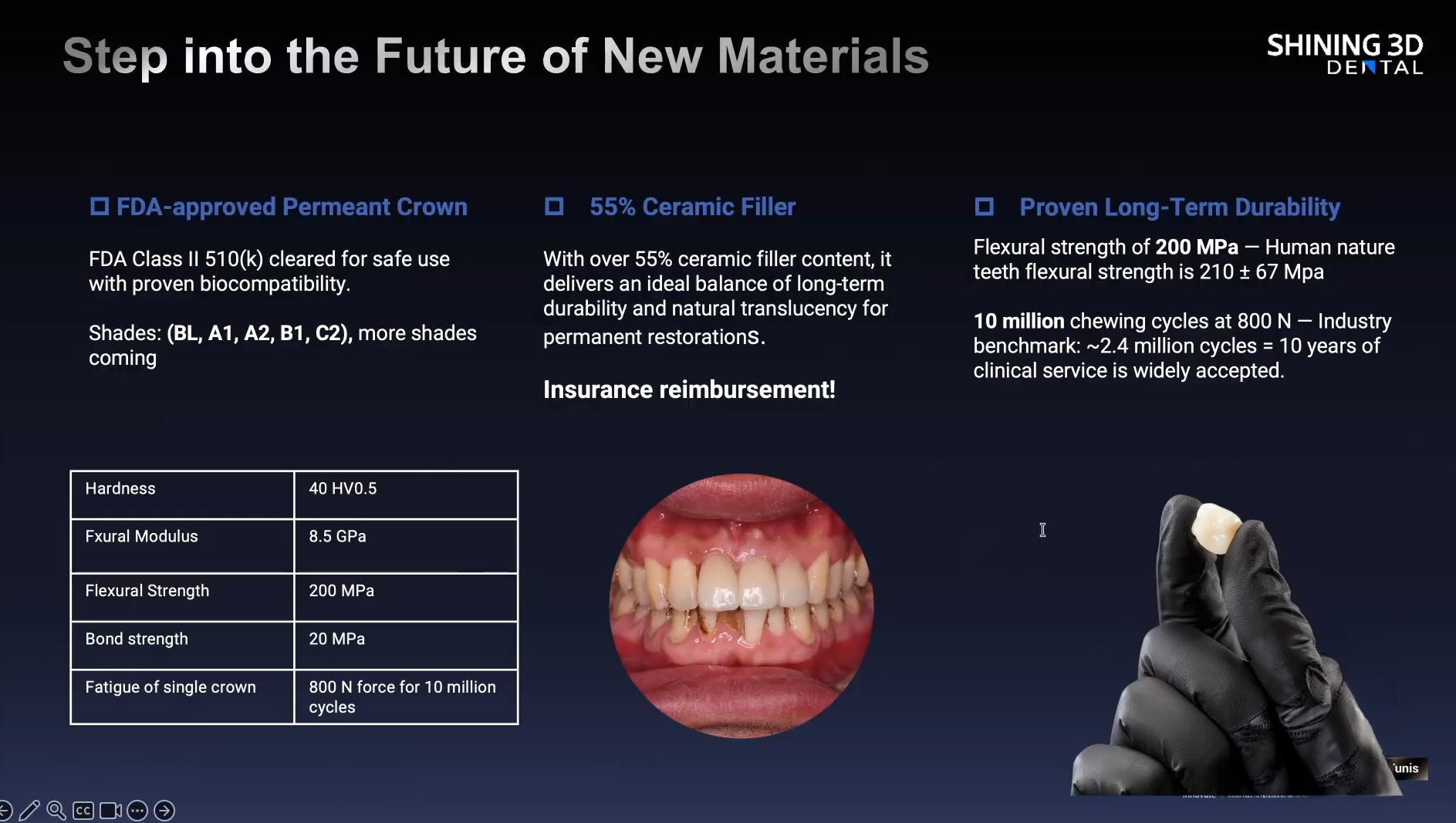

Lumicera Material — FDA Class II 510(k) Cleared
The Ceramix Nano uses Lumicera ceramic-dominant permanent resin — FDA Class II 510(k) cleared with proven biocompatibility.
| Property | Value |
|---|---|
| Ceramic Filler | >55% |
| Flexural Strength | 200 MPa |
| Flexural Modulus | 8.5 GPa |
| Hardness | 40 HV0.5 |
| Bond Strength | 20 MPa |
| Fatigue | 800 N for 10 million cycles |
For reference, human teeth flexural strength is 210 ± 67 MPa. The Ceramix Nano’s 10 million chewing cycle rating at 800 N far exceeds the industry benchmark of ~2.4 million cycles considered equivalent to 10 years of clinical service.
Available shades at launch: BL, A1, A2, B1, C2 — additional shades coming.

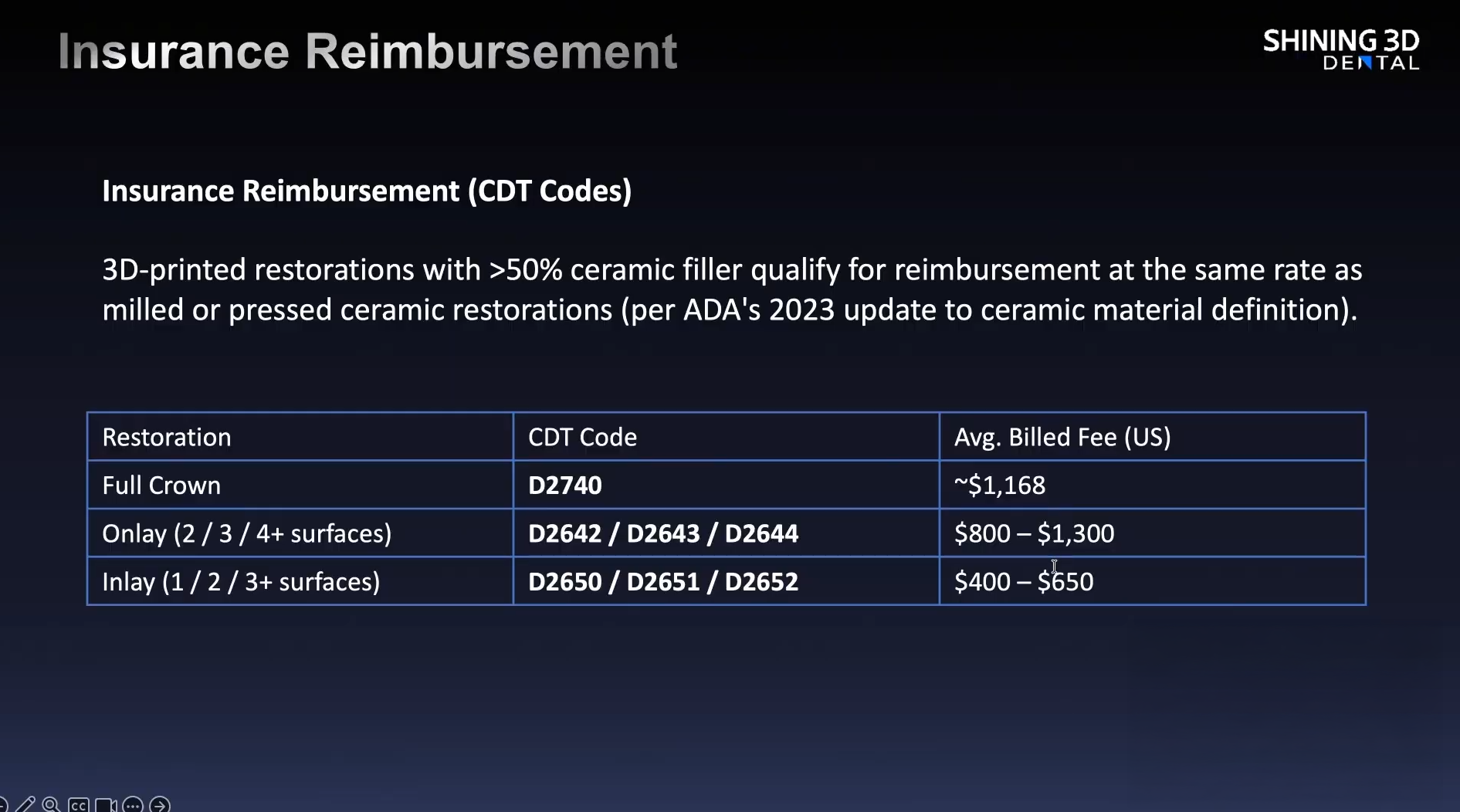

Insurance Reimbursement — CDT Codes
3D-printed restorations with >50% ceramic filler qualify for reimbursement at the same rate as milled or pressed ceramic restorations per ADA’s 2023 update to ceramic material definition.
| Restoration | CDT Code | Avg. Billed Fee (US) |
|---|---|---|
| Full Crown | D2740 | ~$1,168 |
| Onlay (2/3/4+ surfaces) | D2642 / D2643 / D2644 | $800 – $1,300 |
| Inlay (1/2/3+ surfaces) | D2650 / D2651 / D2652 | $400 – $650 |

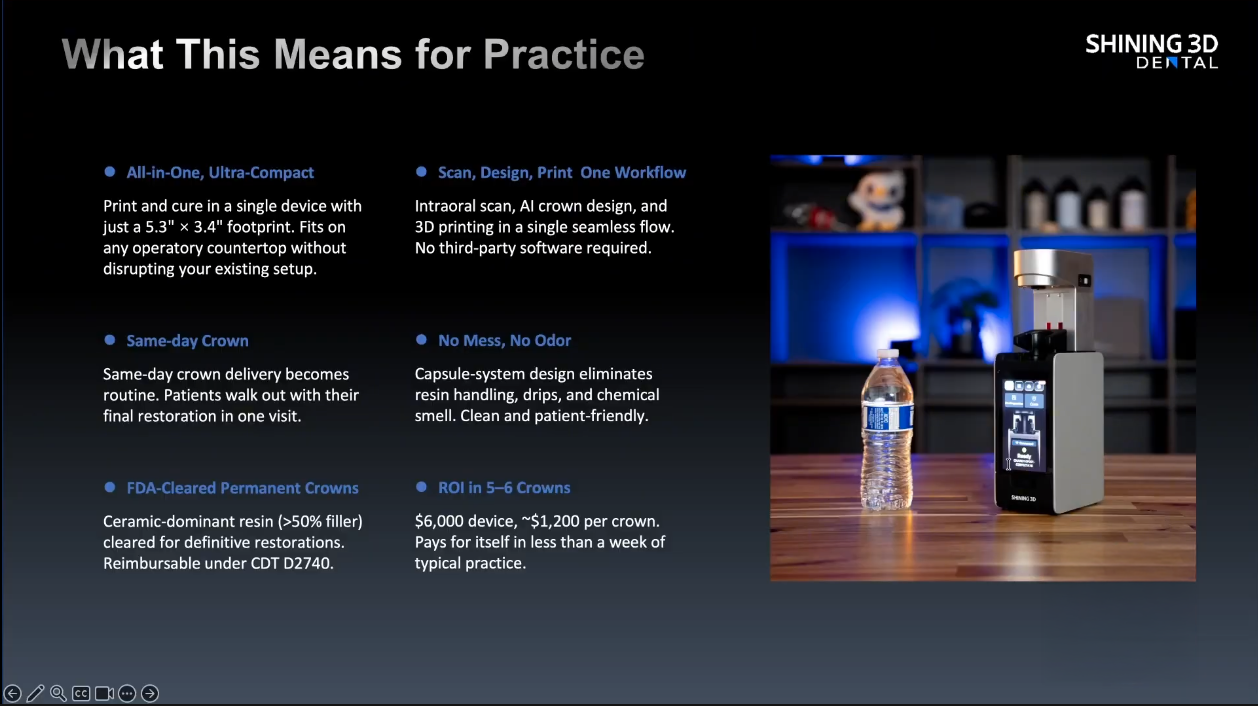

The ROI Case
At ~$1,168 reimbursement per crown under CDT D2740, the Ceramix Nano pays for itself in 5 to 6 cases. For most practices doing moderate crown volume, that’s less than one week of production. After that, every crown goes straight to your bottom line — minus a lab bill that no longer exists.
Key Specifications:
- Dimensions: 5.31″ × 3.43″ × 10.79″
- Weight: Under 4.6 lbs
- Print Speed: Under 10 minutes per crown
- AI Design Time: ~2 minutes
- Capsule Yield: Up to 3 crowns per capsule
- Build Depth: 40mm (accommodates 38mm 3-unit bridges)
- Built-in Curing: Yes — 90°C professional curing module
- N2/CO2 Curing: Yes — with optional Aesthetic Kit
- Printing Technology: APS (Advanced Printing System)
- Material: Lumicera — FDA Class II 510(k) cleared permanent resin
- Ceramic Filler: >55%
- Available Shades: BL, A1, A2, B1, C2 (more coming)
- Applications: Crown, Veneer, Inlay, Onlay, Bridge
- CDT Code: D2740, D2642-D2644, D2650-D2652
- Compatibility: Mac and Windows via Shining 3D Dental Cloud
- AI Design Cost: $1–$3 per crown — charged only when satisfied
What’s Included:
- Ceramix Nano all-in-one printer/curing unit
- Lumicera resin capsule starter kit
- Shining 3D Dental Cloud AI Design workflow access
- Setup, training, and support from Sodium Dental
Optional Add-On:
- Aesthetic Kit — $700 (N2/CO2 gas curing for premium stain/glaze finishing on anterior cases)
Launch Promotion: Purchase before June 30, 2026 and receive 50 free AI Crown Designs — a $50–$150 value depending on complexity.
Questions? Call us at 1-800-821-8962 or email sales@sodiumdental.com. We’re a certified Shining 3D dealer and we’ll walk you through whether the Ceramix Nano is the right fit for your practice.
