Genuine Shining 3D Ceramix resin capsules for the Ceramix Nano chairside crown printer. FDA Class II 510(k) cleared Lumicera ceramic-dominant resin with >55% ceramic filler. Each capsule prints up to 3 crowns in a single cycle. Compatible with crowns, veneers, inlays, onlays, and bridges. Available in 5 shades. Sold individually — select your shade above.
Lumicera Resin Capsules for the Ceramix Nano – 3-pack
$67.00
Description
The Official Consumable for the Ceramix Nano
Ceramix capsules are the genuine Shining 3D resin cartridges designed exclusively for use with the Ceramix Nano chairside crown printer. Each capsule contains Lumicera ceramic-dominant resin — FDA Class II 510(k) cleared for permanent restorations with proven biocompatibility.
The closed capsule system means no open resin handling, no drips, and no chemical smell in the operatory. Pop in a capsule, dispatch the print job from the cloud, and the Ceramix Nano does the rest.
Up to 3 Restorations Per Capsule
Through Shining 3D’s intelligently generated stacked arrangement, a single Ceramix capsule can produce up to 3 crowns in one print cycle. Crown and die can also be printed together in a single unit. With a 40mm internal chamber height, the capsule easily accommodates 38mm 3-unit bridges.

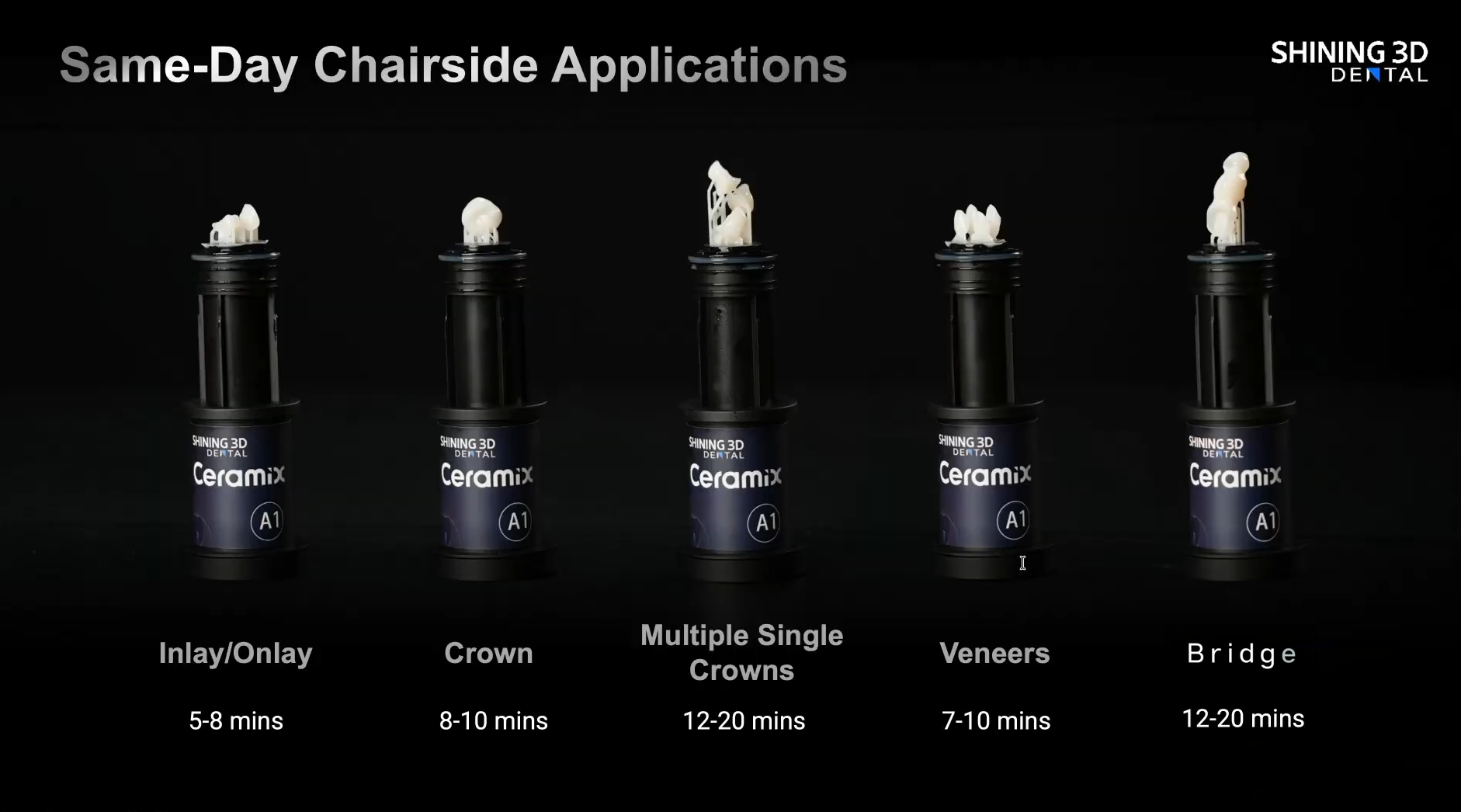

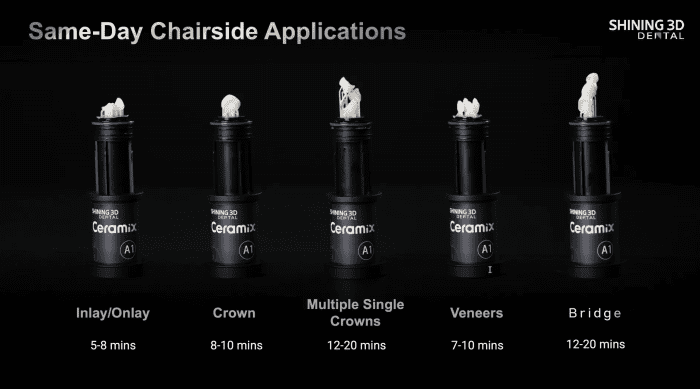

Same-Day Chairside Applications and Print Times
| Application | Print Time |
|---|---|
| Inlay / Onlay | 5–8 minutes |
| Crown | 8–10 minutes |
| Veneers | 7–10 minutes |
| Multiple Single Crowns | 12–20 minutes |
| Bridge | 12–20 minutes |
Lumicera Material Specifications
| Property | Value |
|---|---|
| Ceramic Filler | >55% |
| Flexural Strength | 200 MPa |
| Flexural Modulus | 8.5 GPa |
| Hardness | 40 HV0.5 |
| Bond Strength | 20 MPa |
| Fatigue | 800 N for 10 million cycles |
Flexural strength of 200 MPa is comparable to natural tooth strength (210 ± 67 MPa). The 10 million chewing cycle rating at 800 N far exceeds the industry benchmark of ~2.4 million cycles, widely accepted as equivalent to 10 years of clinical service.
Insurance Reimbursable — CDT Codes
Restorations printed with Ceramix capsules qualify for reimbursement at the same rate as milled or pressed ceramic restorations per ADA’s 2023 update to ceramic material definition.
| Restoration | CDT Code | Avg. Billed Fee (US) |
|---|---|---|
| Full Crown | D2740 | ~$1,168 |
| Onlay (2/3/4+ surfaces) | D2642 / D2643 / D2644 | $800 – $1,300 |
| Inlay (1/2/3+ surfaces) | D2650 / D2651 / D2652 | $400 – $650 |

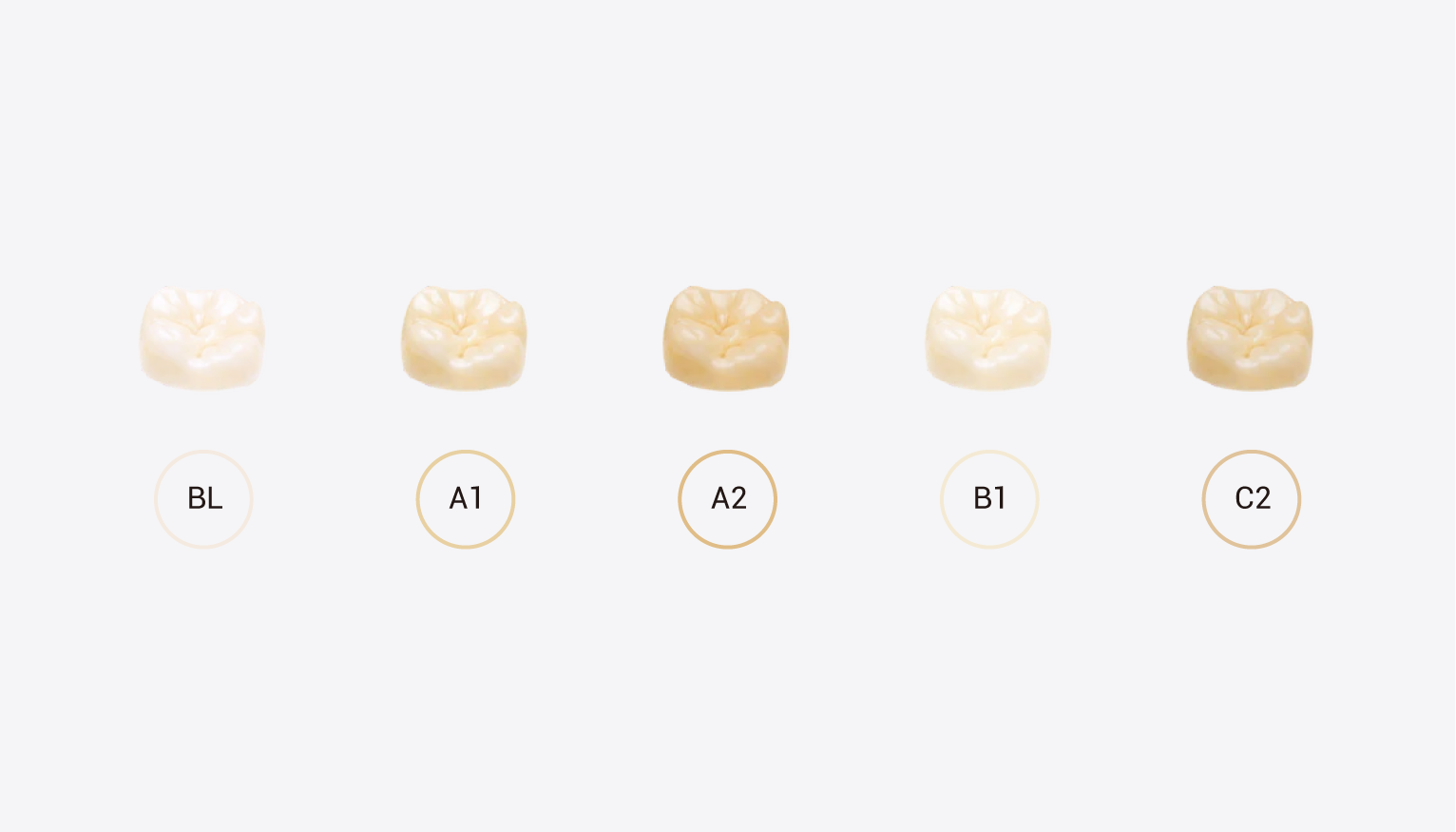

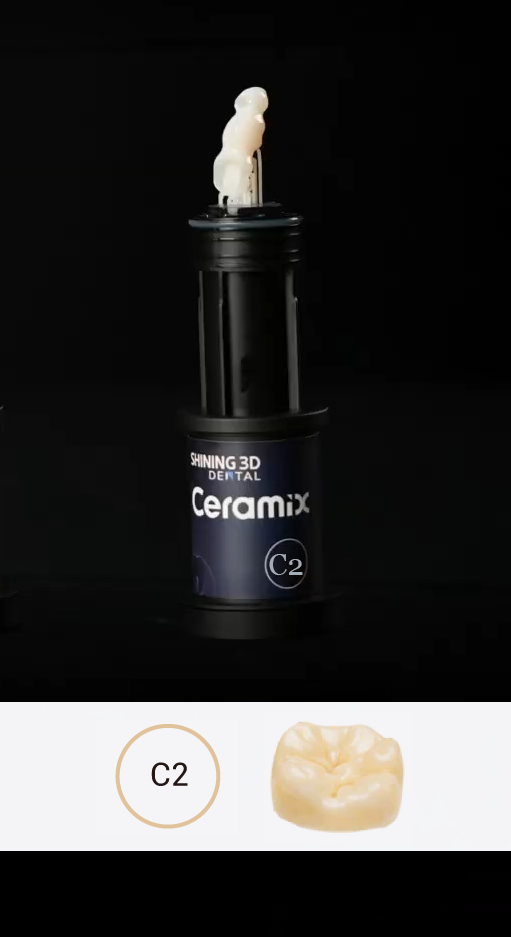

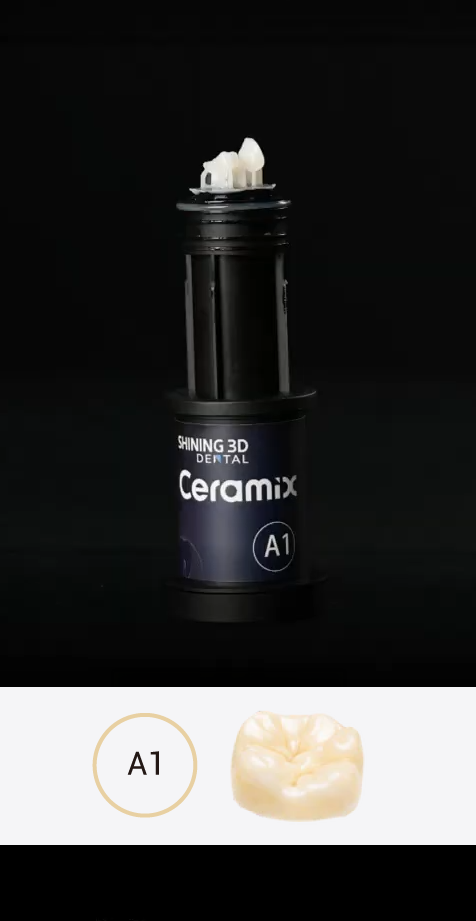

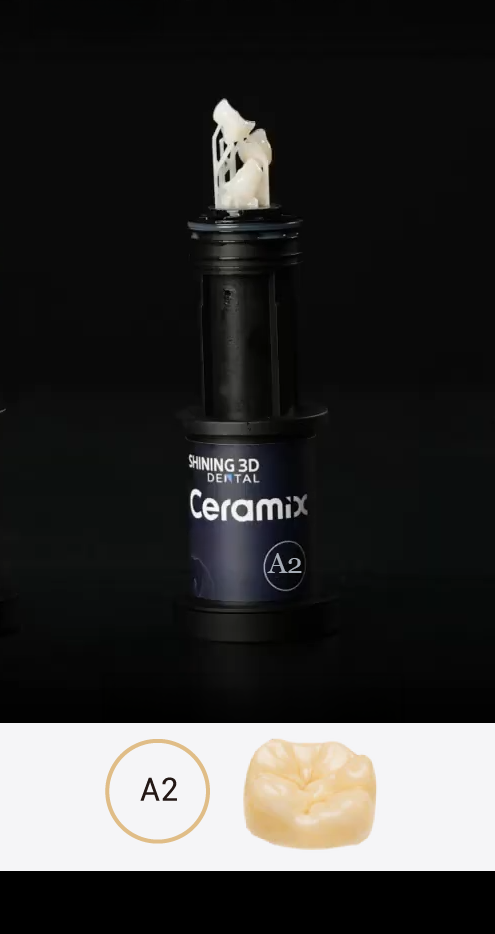

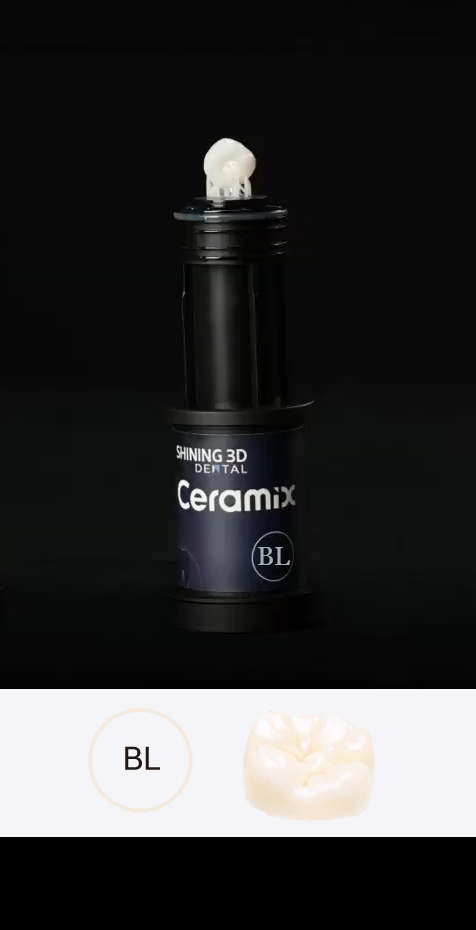

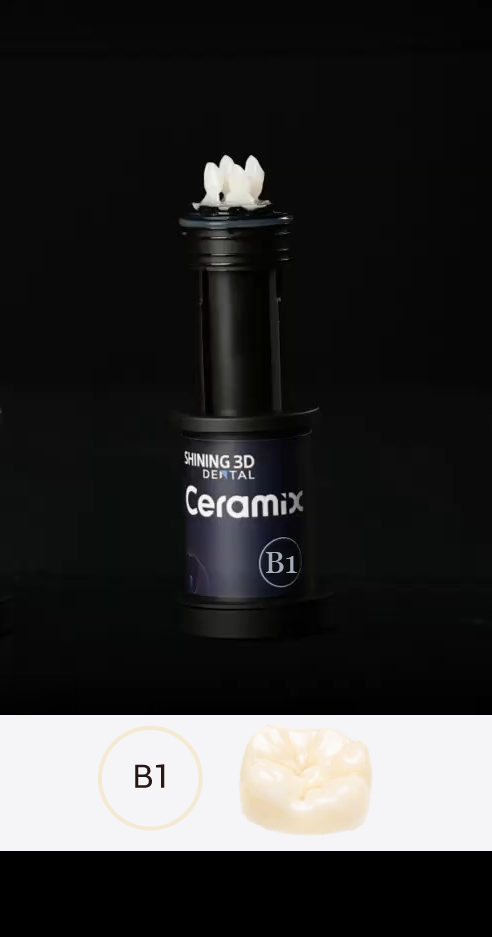

Available Shades
BL · A1 · A2 · B1 · C2
Additional shades coming. Select your shade from the dropdown above.
Important: Ceramix capsules are compatible exclusively with the Shining 3D Ceramix Nano printer. Not compatible with any other printer or resin system.
Questions? Call us at 1-800-821-8962 or email sales@sodiumdental.com.
Additional information
| Weight | 2 lbs |
|---|---|
| Dimensions | 3 × 3 × 6 in |
| Shade | BL, A1, A2, B1, C2 |
