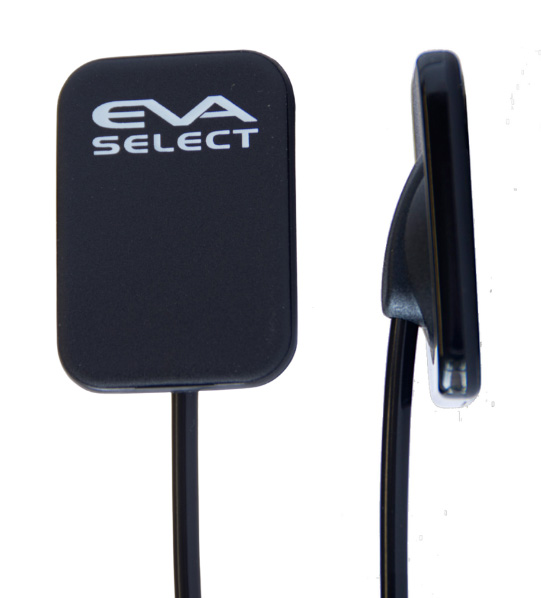

Eva select Digital X-Ray Sensors
Sensors come in Size 1 and Size 2
These direct USB sensors are fast, reliable and very high quality.
Market Leading Resolution

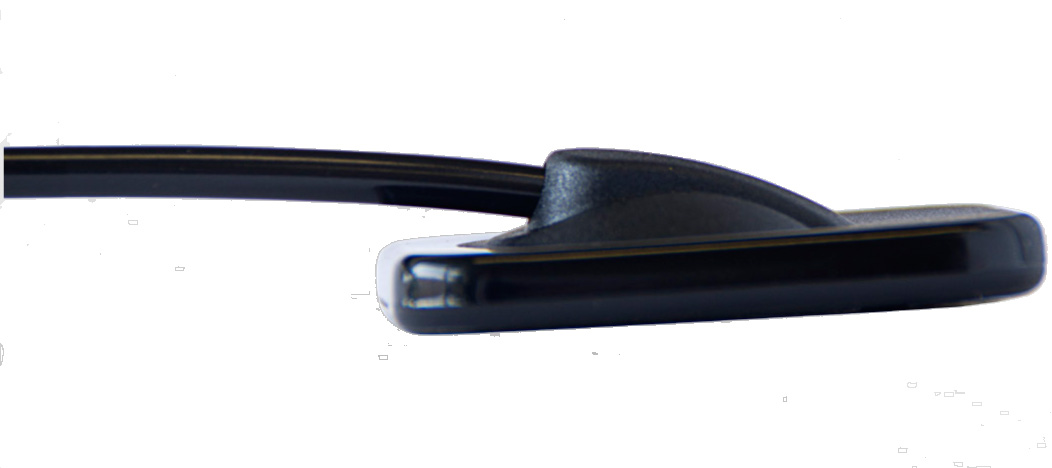

Razor Thin 5.4 mm Thickness
Eva Select Sensor
$5,295.00
Description
Eva Select Sensor
•Market-leading resolution (20+ line pairs per mm)
•Rounded corners for patient comfort
•Razor thin: 5.4 mm thickness
•Integrates with major software platforms
•USB inter face works with your existing system
Comes In Two Sizes : Size 1 Pedo Size 2 Adult
Technical Specifications
| Size 2 | Size 1 | |
| Grey Shades: | 4096 (12 Bits) | 4096 (12 Bits) |
| Imager Resolution: | 20+ lp/mm | 20+ lp/mm |
| Optical Resolution: | 26 lp/mm | 26 lp/mm |
| Pixel Area: | 19 microns x 19 microns | 19 microns x 19 microns |
| Capsule Dimensions: | 42.8 mm x 30.5 mm x 5.4 mm | 36.7 mm x 24.4 mm x 5.4 mm |
| Image Size: | 4.94 MB | 3.16 MB |
Additional information
| Weight | 5 lbs |
|---|---|
| Dimensions | 9 × 6 × 2 in |
| Sensor Size | Adult Size 2, Pedo Size 1 |
