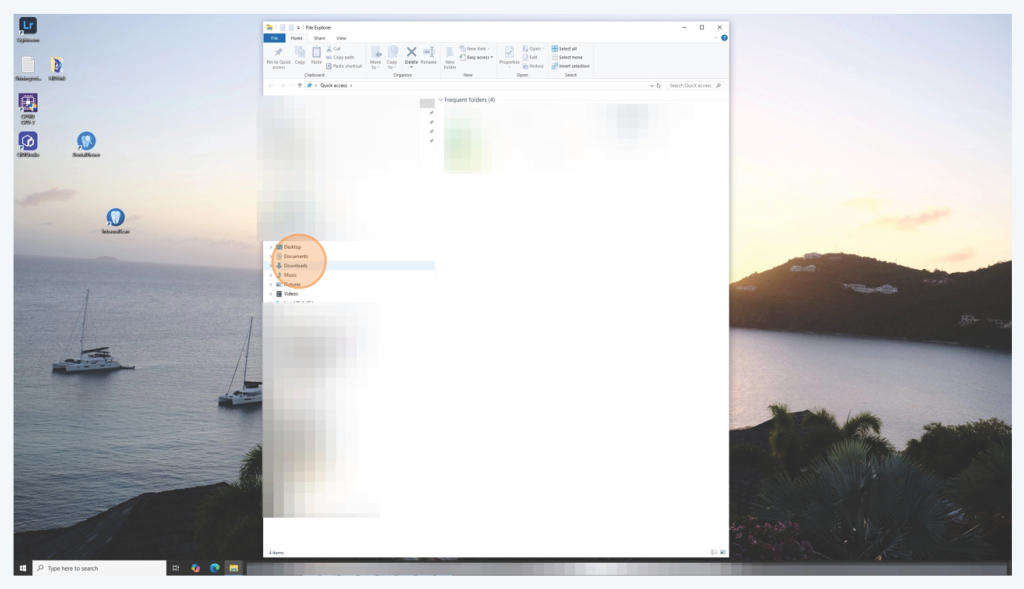

Goto your Email and download the Zip File with your calibration files. They are now likely in your downloads folder

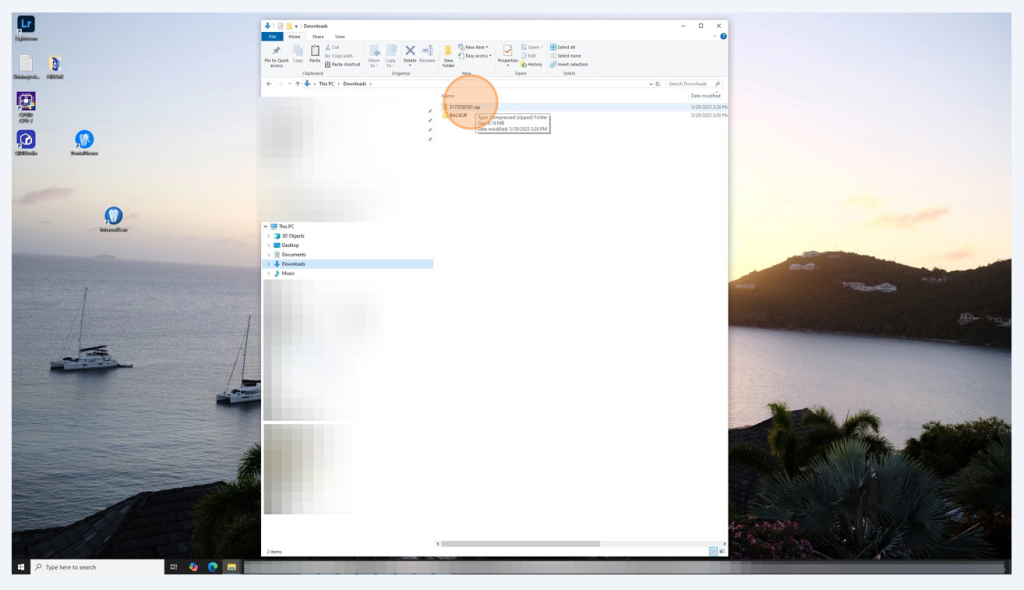

Right click the zip file and extract all.

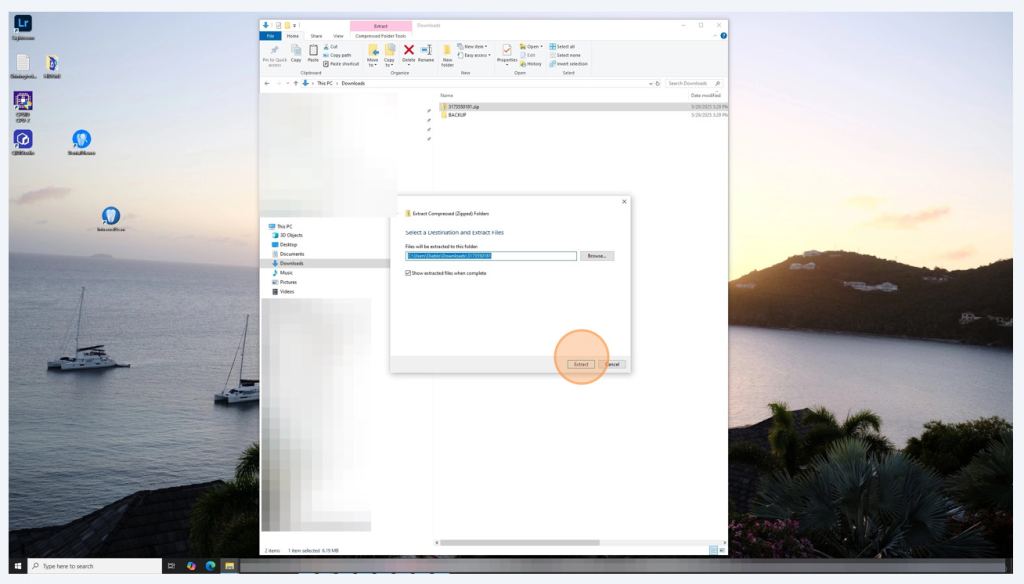

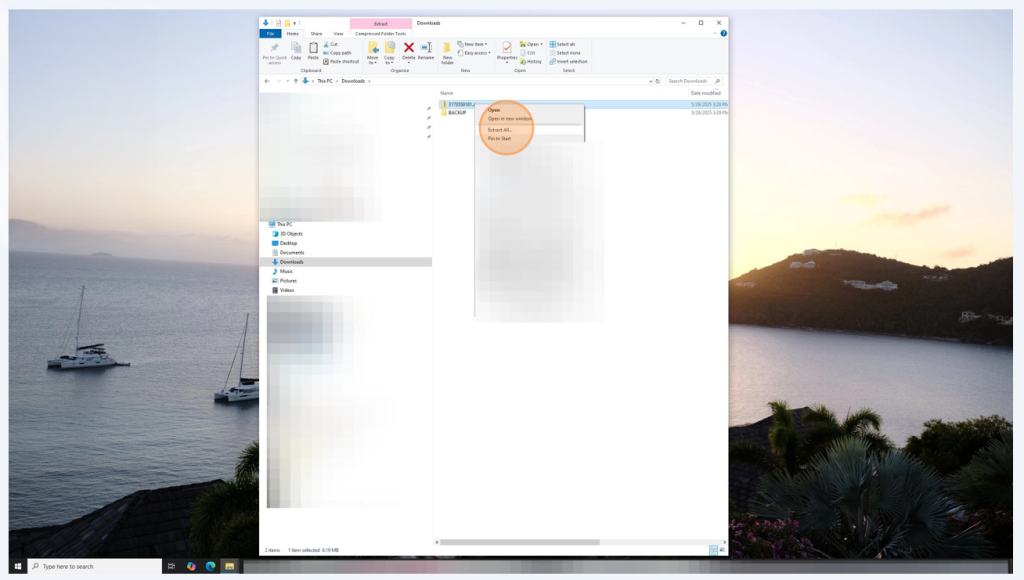

Click “Extract All…”

It will create a folder with the serial number name.

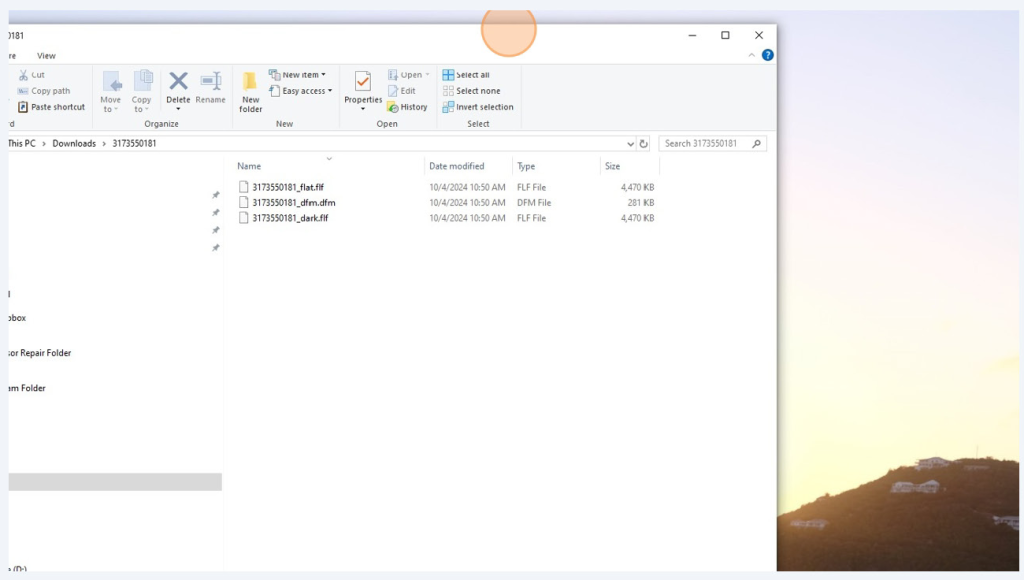

The folder with the newly extracted files in it should open automatically, move the folder to half of your screen on the left

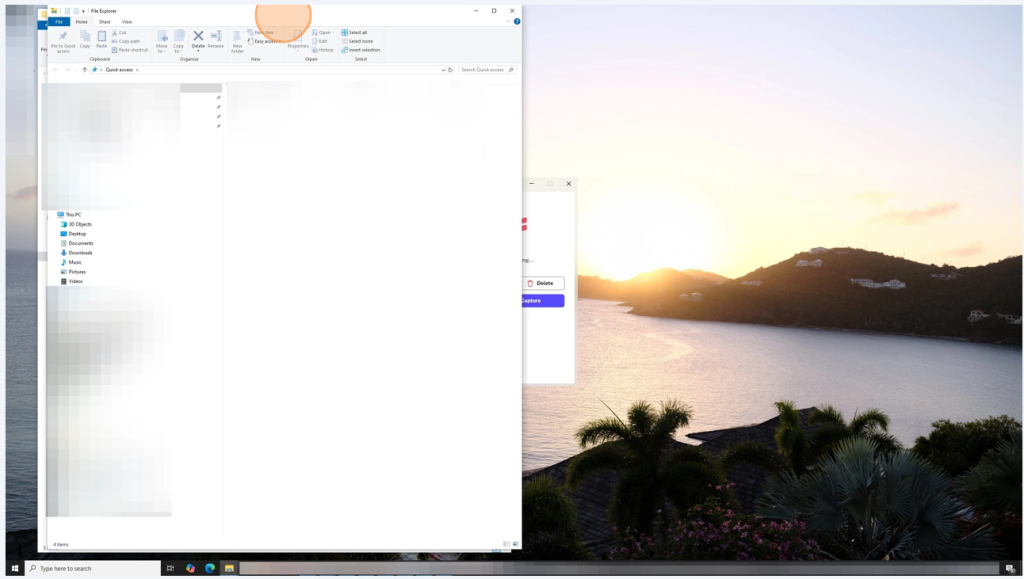

Click the Start Button and start typing Explorer and click on File Explorer

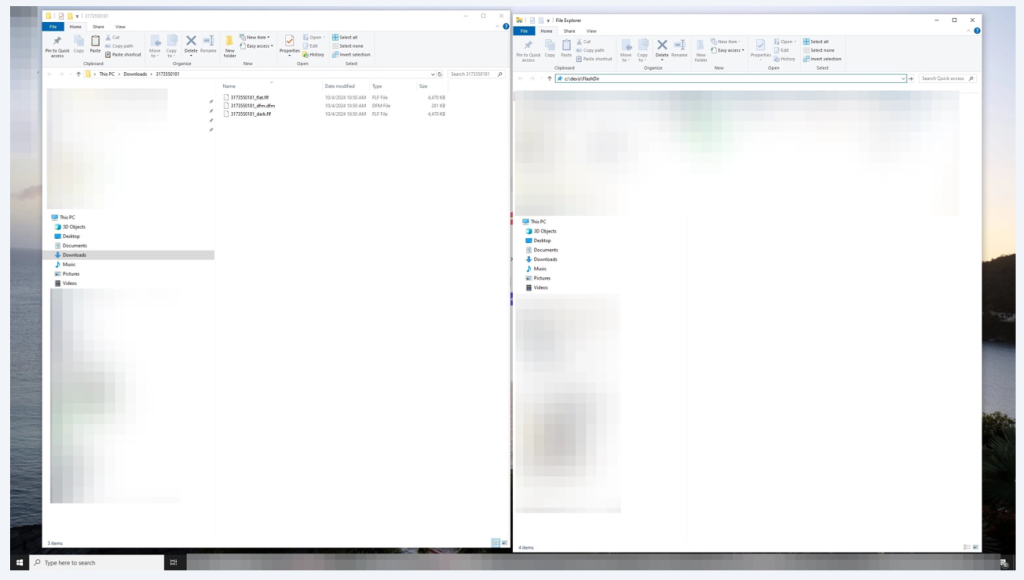

Move this new window to the right side of the screen

In your right hand window look for where the rest of your sensor calibration files are stored. They will either be in
C:DexisFlashDir
C:Program Files (x86)GendexGXS700_CorrectionFiles

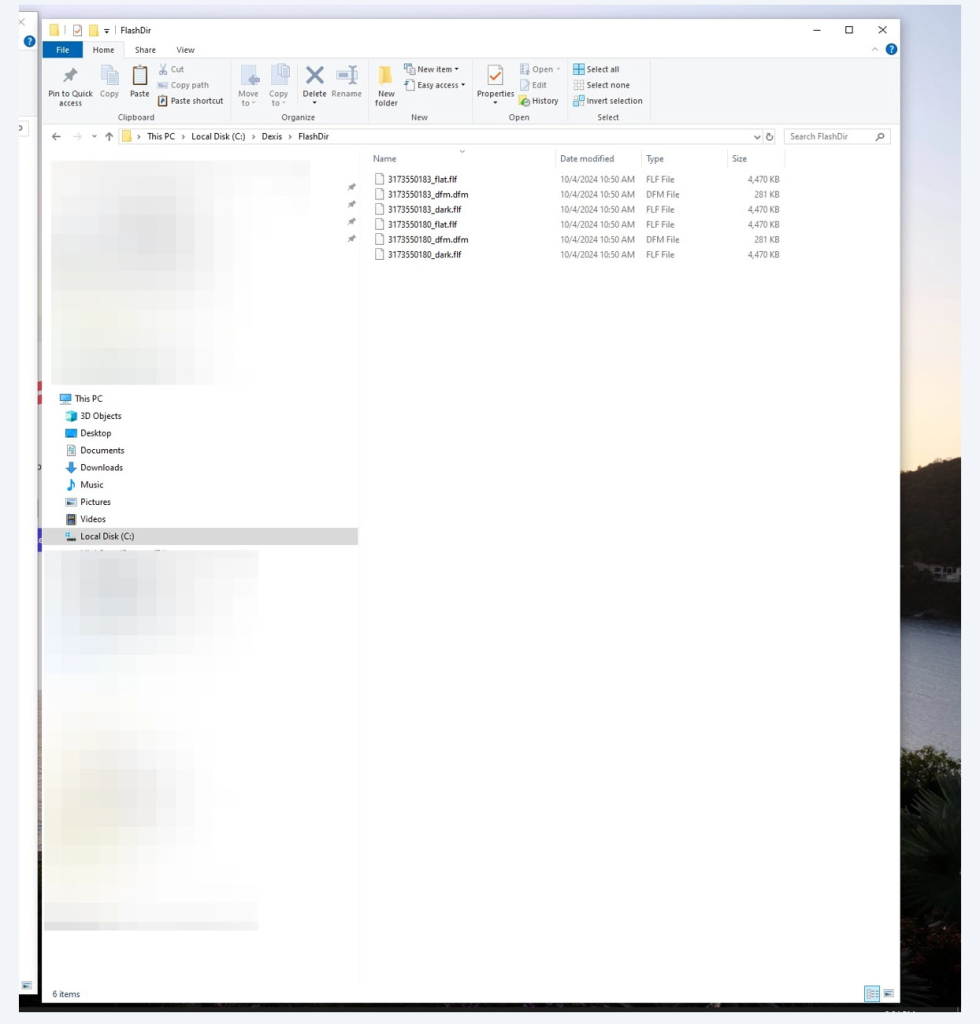

You will know you found the correct folder because you will see more calibration files in there. There should be 3 calibration files for each sensor you have in your office and be named by the serial number of the sensor.

I need to select my new calibration files that match the serial number of the sensor. I’m installing.

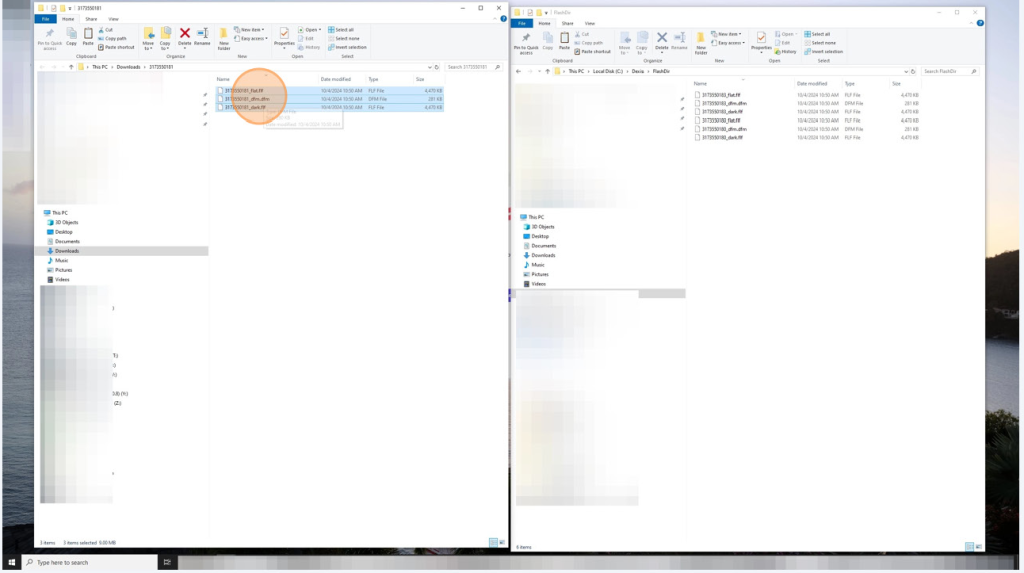

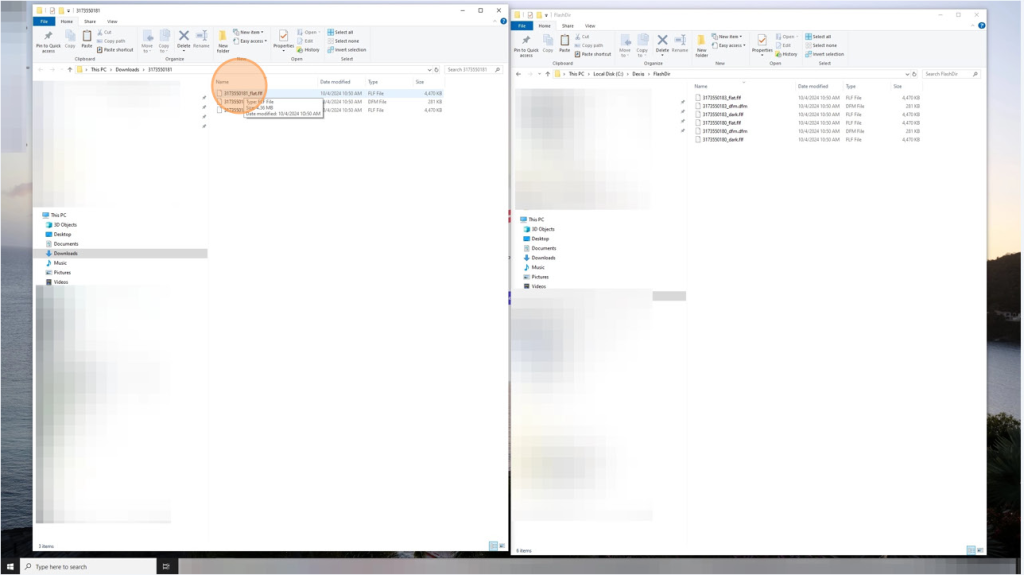

Select all three of your NEW calibration files in your left side folder, by clicking the top file, holding the shift key and clicking the third file and they will be all selected.

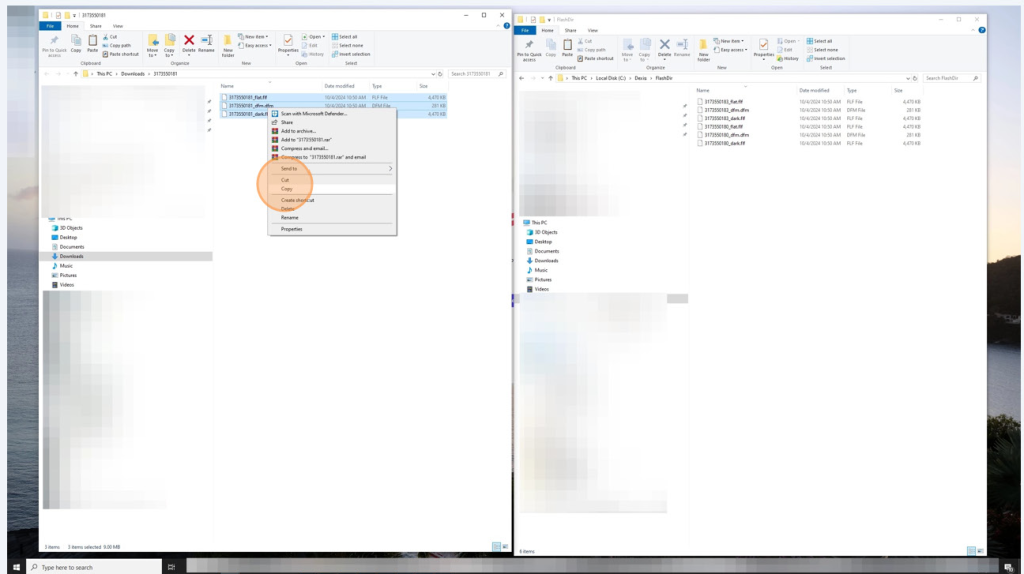

Right click the selected files and then left click “COPY”

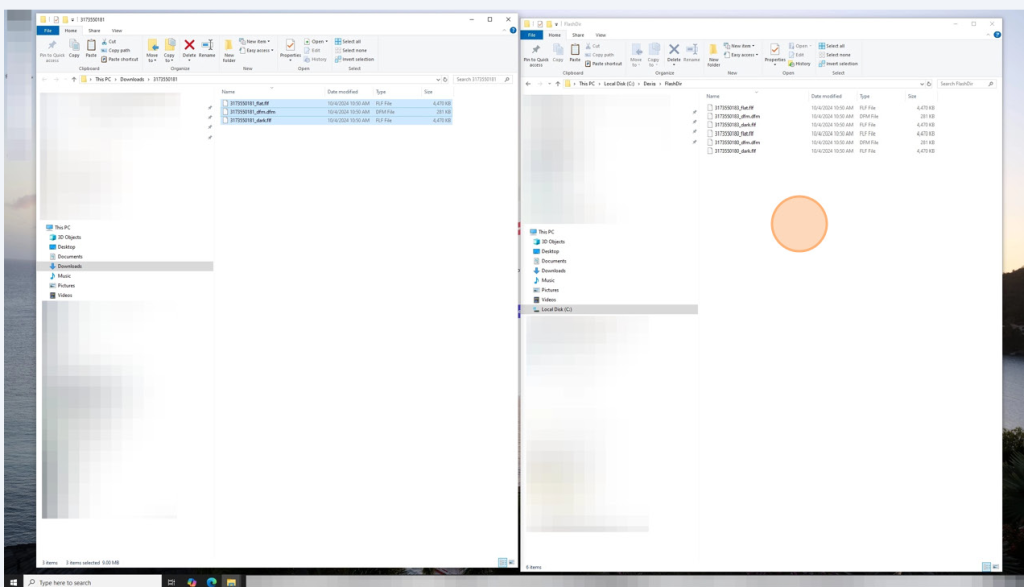

Right click inside the right side folder with the rest of your calibration files.

Click Paste to copy your new calibration files to the folder that should have all your calibration files. This is all you need to do, repeat this on each computer you want to use the new sensor on.
