Owandy I-Max 3D Compact Wall Mount


10 in stock

Owandy I-Max Touch 3D digital pan with option of Ceph capabilities.  The I-Max Touch 3D + SimPlant comes as just a stand alone 3D Digital Pan or a 3D Digital Pan + Ceph attachment.

SKU: N/A Category: Tags: ,


Universal3D volume

The high volume Max Touch 3D (ø93mm x H83mm) delivers acquisition in one single image, covering the entire jaw, including impacted molars, regardless of patient morphology.

Multi FOV

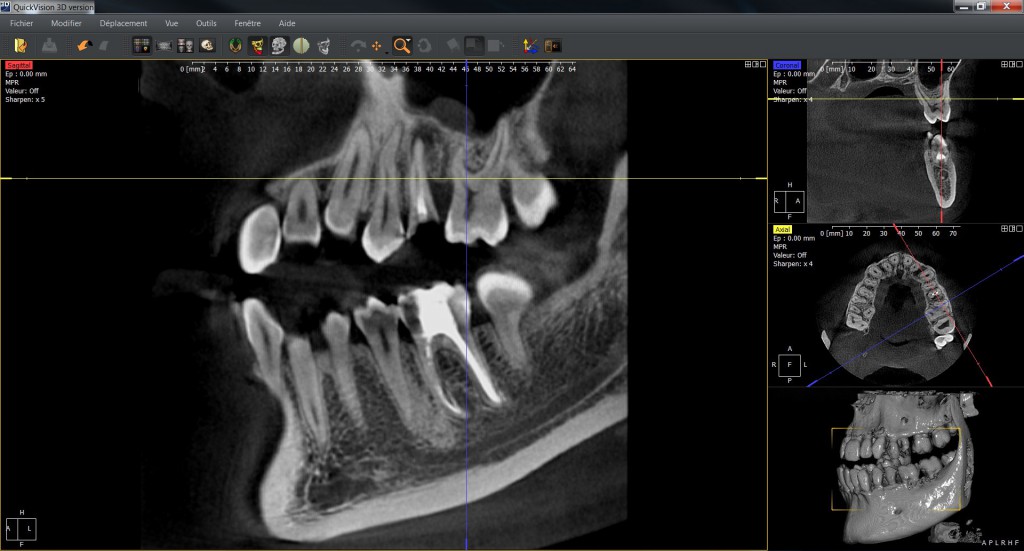

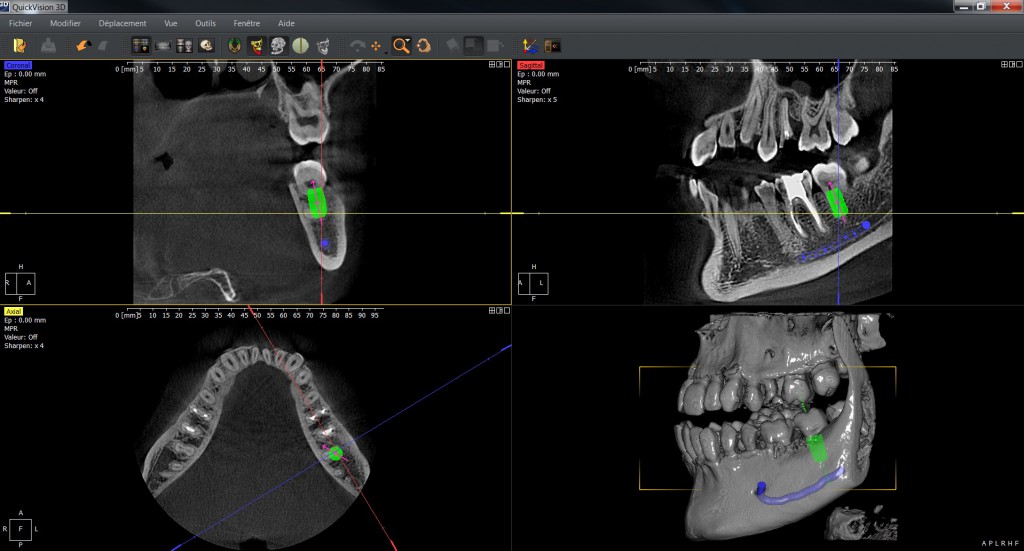

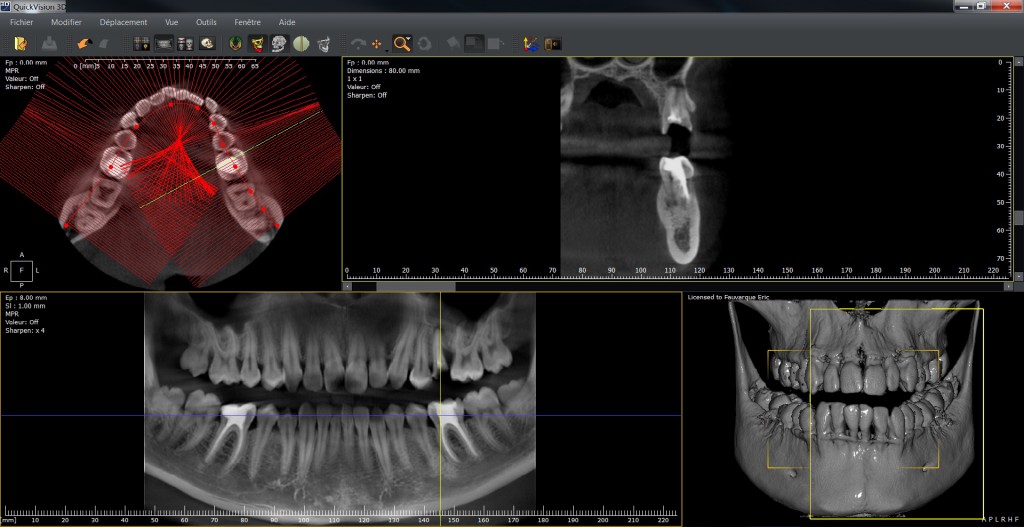

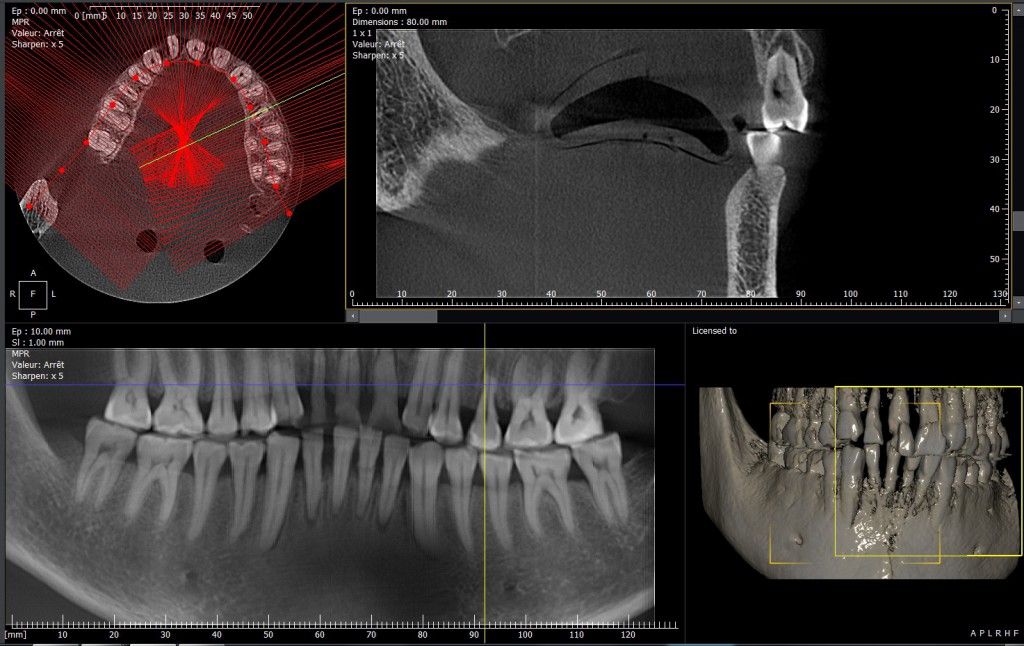

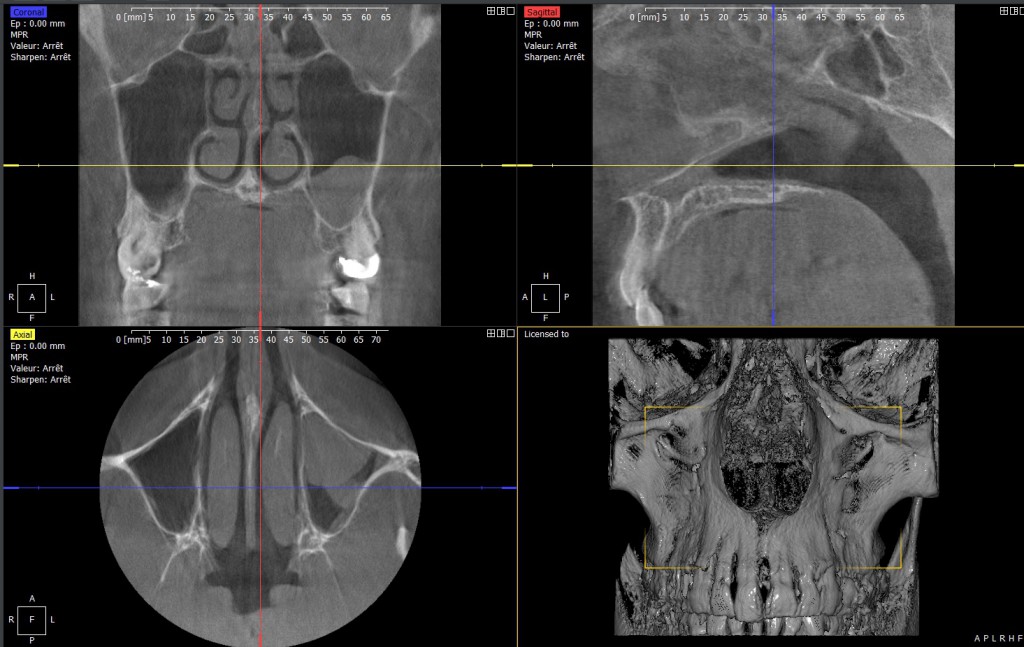

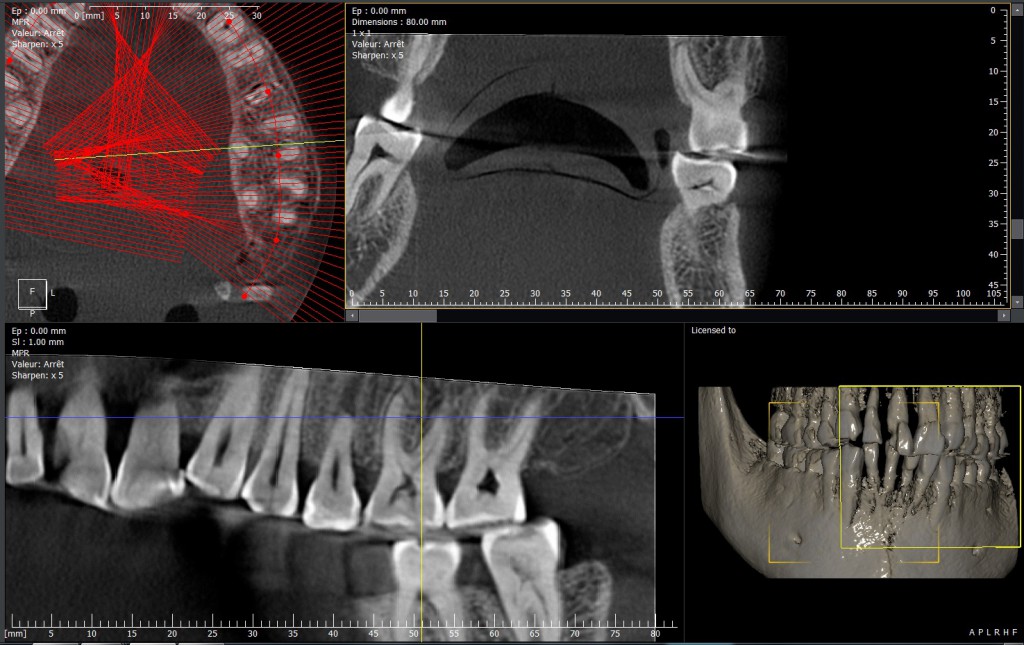

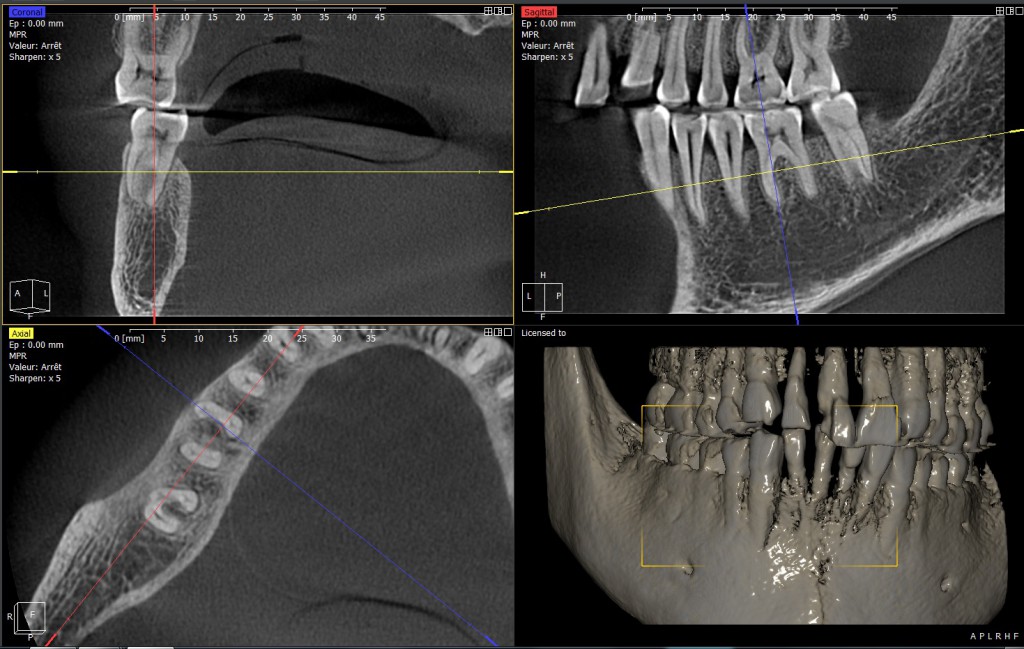

The I-Max Touch 3D multi FOV tridimensional imaging system is an essential tool for identifying and analysing complex cases in implantology and guided surgery, as well as dental surgery, endodontics, periodontics, and general practice.

The following volumes can now be acquired:

  • Mandibular: 93x53mm
  • Maxillary : 93x43mm

HD sensor

The high-contrast HD image generated by the flat panel sensor enables the practitioner to make an accurate diagnosis in seconds.

3 in 1: 3 three acquisition modes in a single device

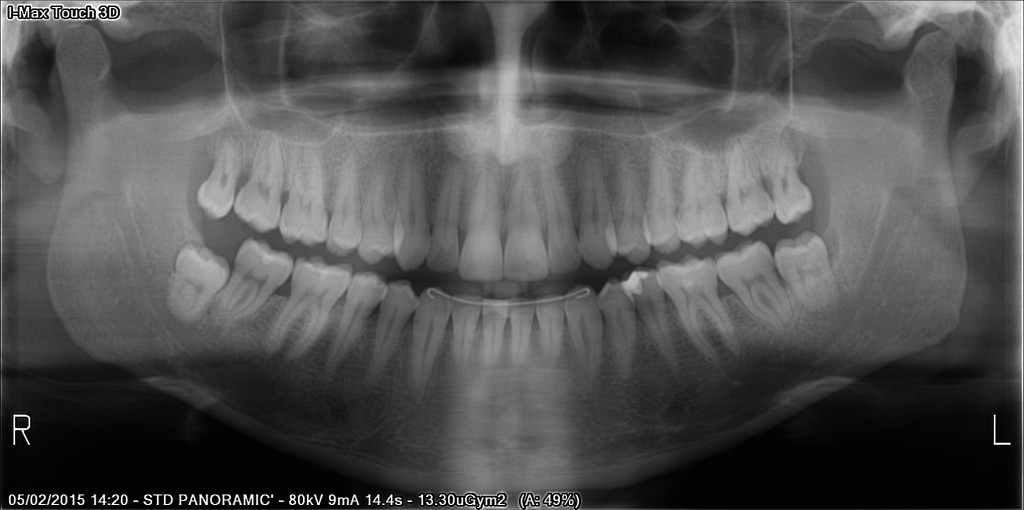

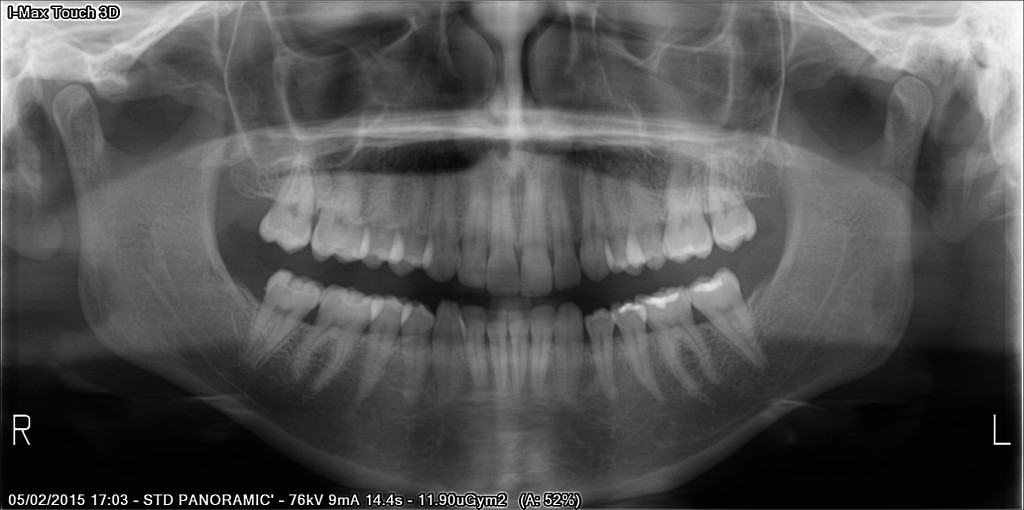

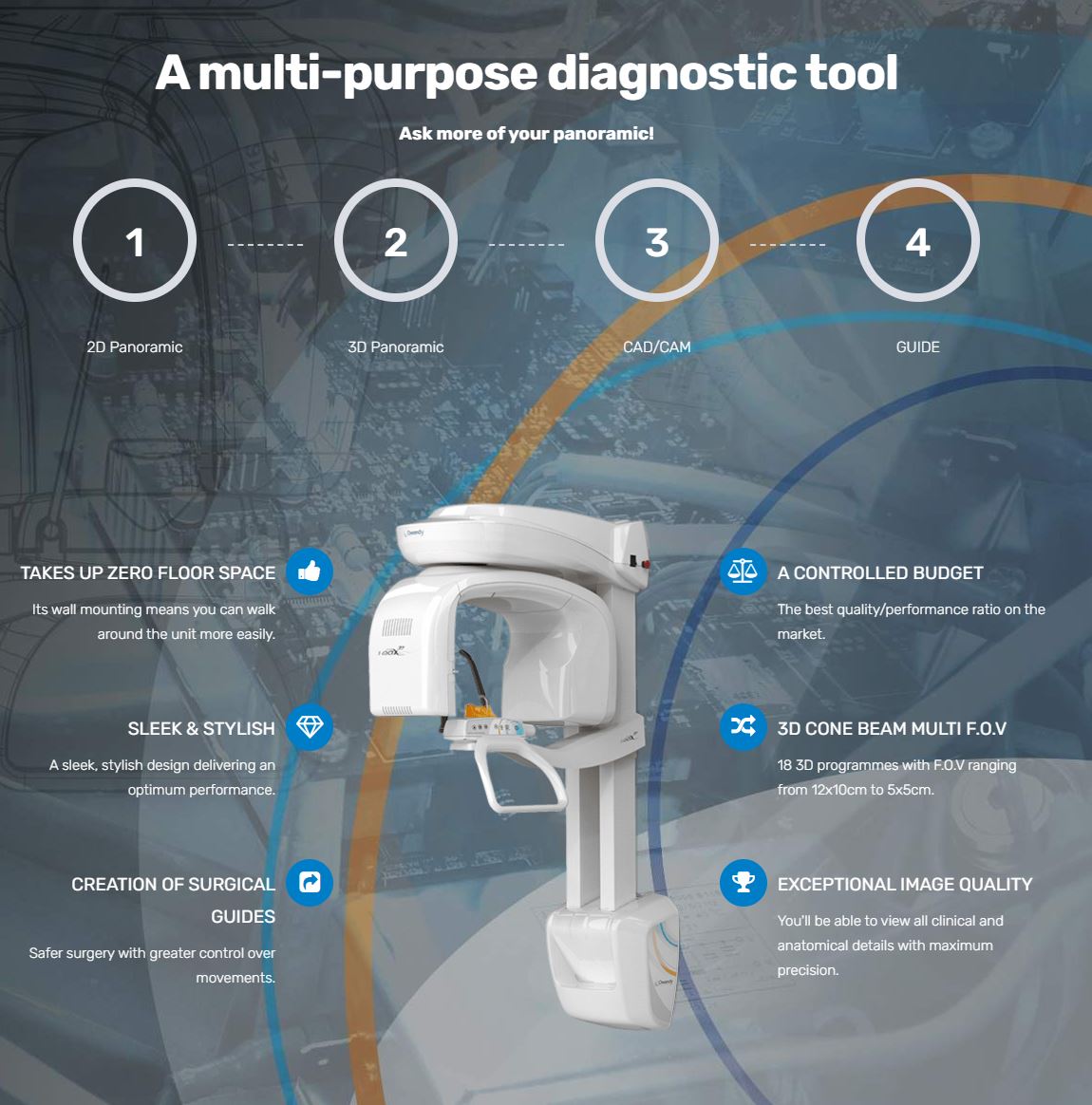

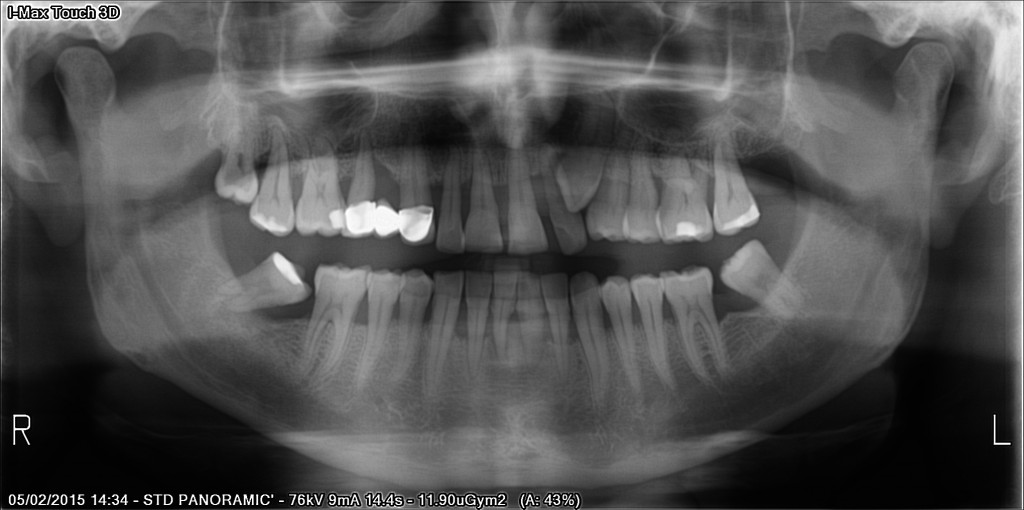

The I-Max Touch 3D panoramic unit is an economical, upgradeable, high quality imaging solution. With three complete programs (Pan / Ceph / 3D), you can perform 3D examinations and also take true panoramic shots (not just reconstructed from 3D volume) and cephalometric images (optional).

The only turnkey system of its kind in the world

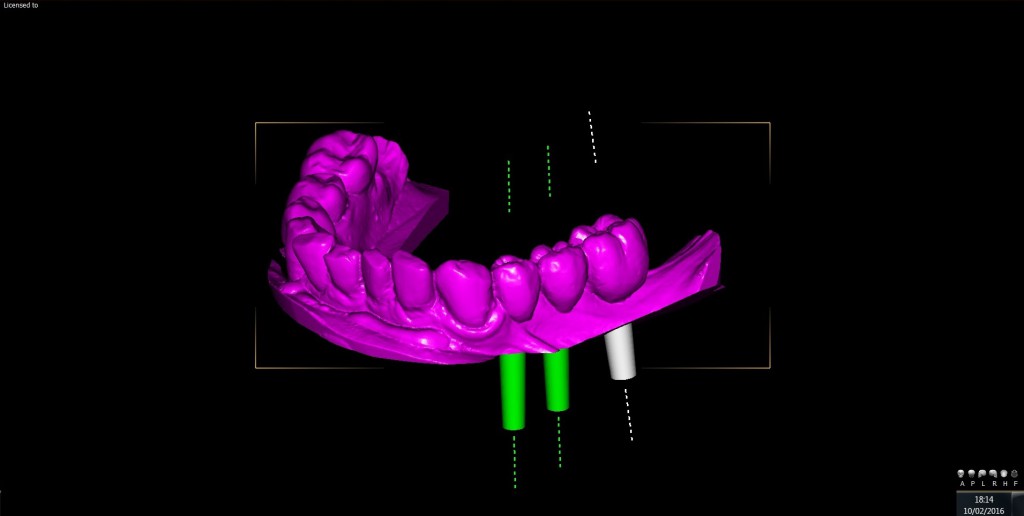

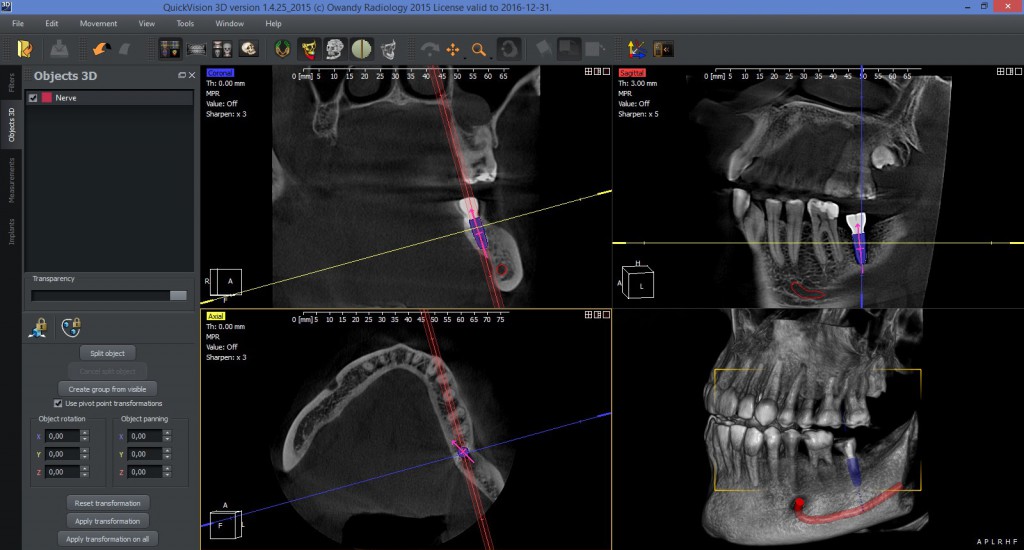

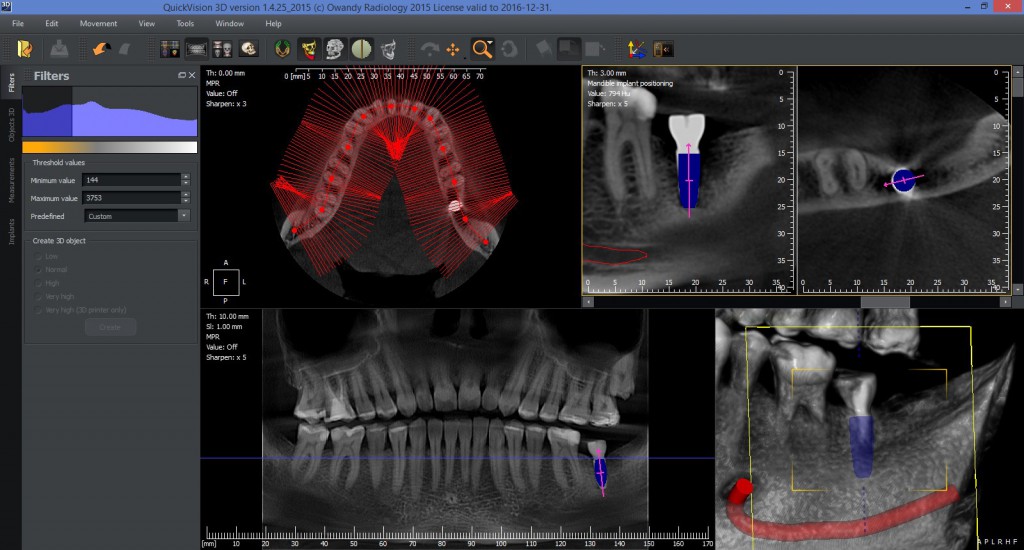

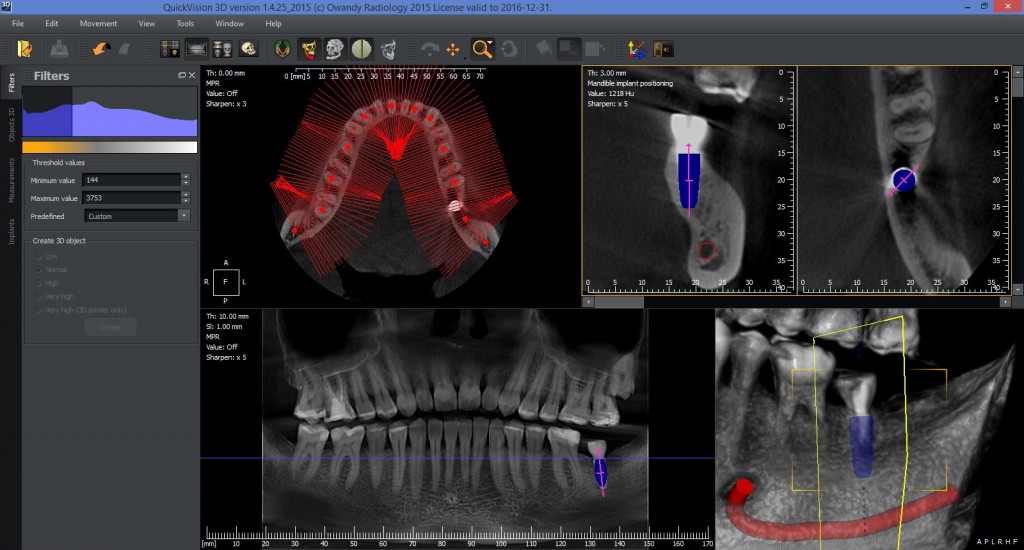

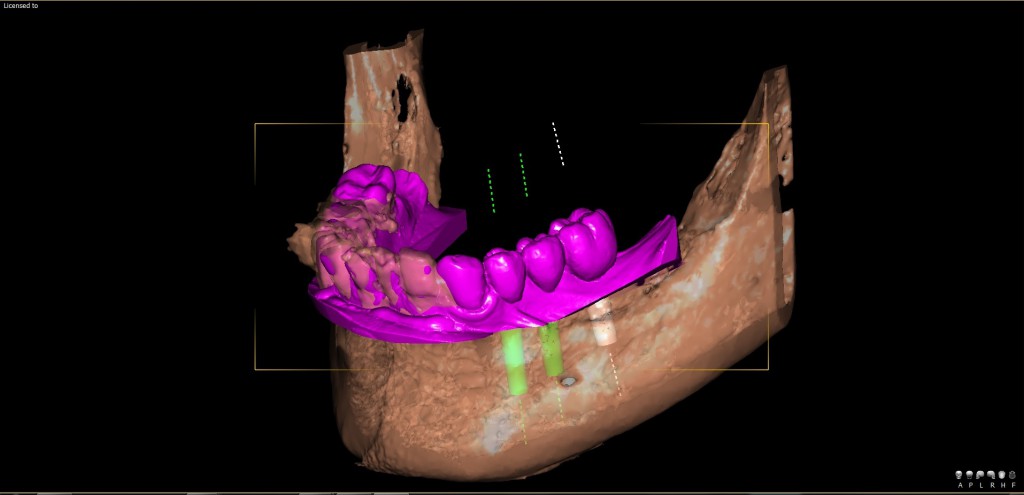

The combination of the I-Max Touch 3D high-performance panoramic unit with SimPlant® Pro, one of the top therapeutic 3D planning software packages, offers precise and dependable planning and simulation of your implant work.


  • 3D Rotation: 200° (180° ATM)
  • Rotation time: 20 s
  • Exposure time: 8 s (pulse generator)
  • Digital sensor: amorphous silicon panel
  • Area: 130 x 130 mm, 512 x 512 pixels
  • F.O.V. (Field Of View): 93 x 83 mm / 93 x 53 mm / 93 x 43 mm
  • Voxels: 92 μm

Return policy: This product is not able to be returned

Shipping and Installation Is Not Included

Additional information


Compact Wall Mount I-Max Touch 3DCT, Compact Wall Mount I-Max Touch 3DCT With Ceph
