Description
DC Air Wireless Digital X-Ray Sensor

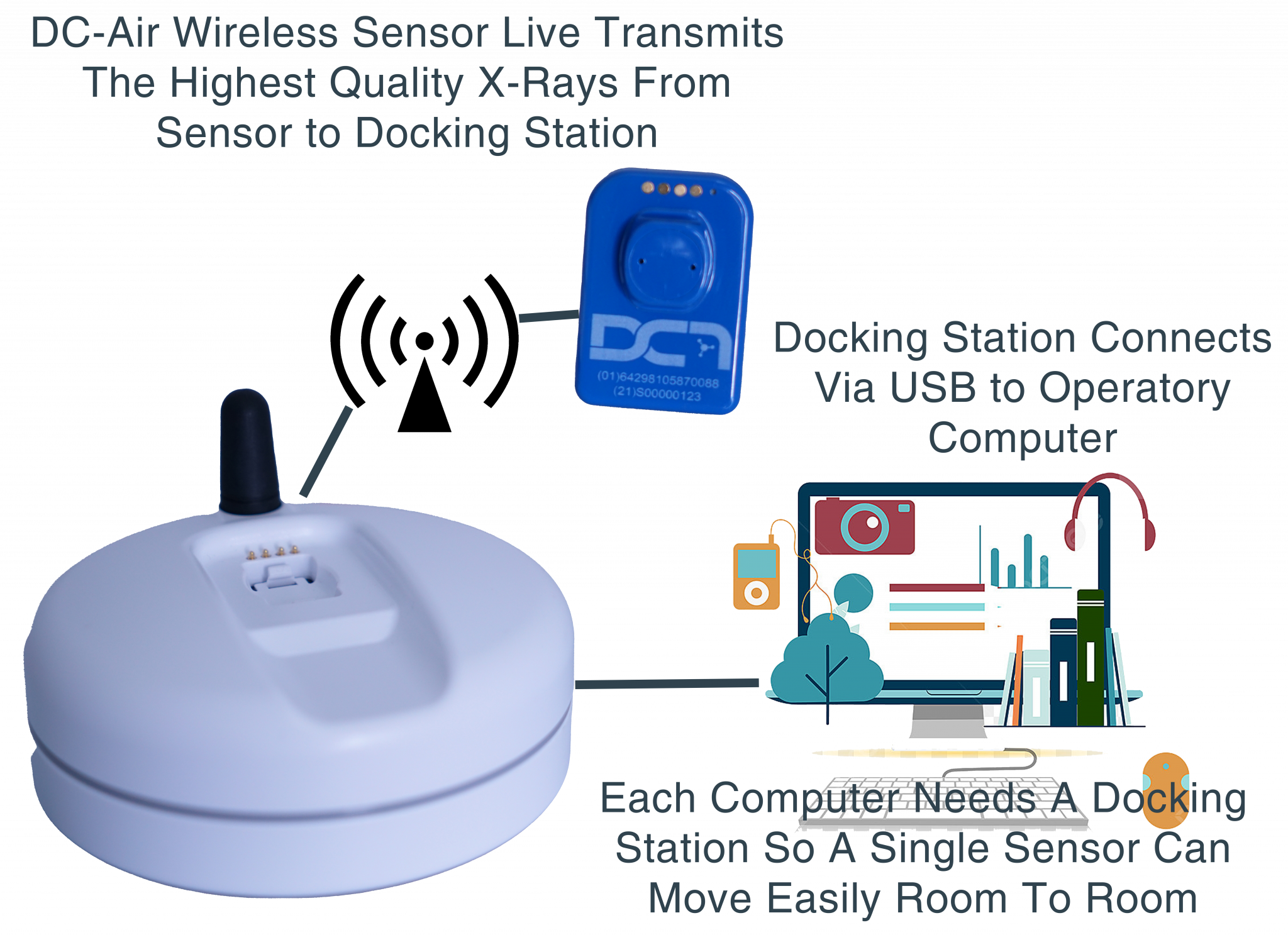

DC-Air Wireless Sensor – How It Works
DC-Air by Freedom Technologies Group is the latest revolutionary digital sensor on the market. DC-Air™ combines direct-conversion and Bluetooth® technologies to provide entirely new levels of clarity, comfort, durability, and convenience.
DC stands for Direct-Conversion
The clearest image of any sensor
Only DC-Air™ has direct-conversion technology that grabs invisible x-ray energy and turns it directly into image data. This provides far greater detail and less noise in your images, and gives DC-Air™ additional advantages over any other sensor:
- Removes sensor cables, scintillators, and fiber optic plates, the main failure points on digital x-ray sensors.
- Allows for ultra-thin detector giving DC-Air™ one of the thinnest profiles of any sensor at just 5.2mm in thickness
- Requires far less power consumption than traditional sensor technology, allowing for more consistent use and over 150 images on a single charge
Pick Your Product From The Drop Down Above

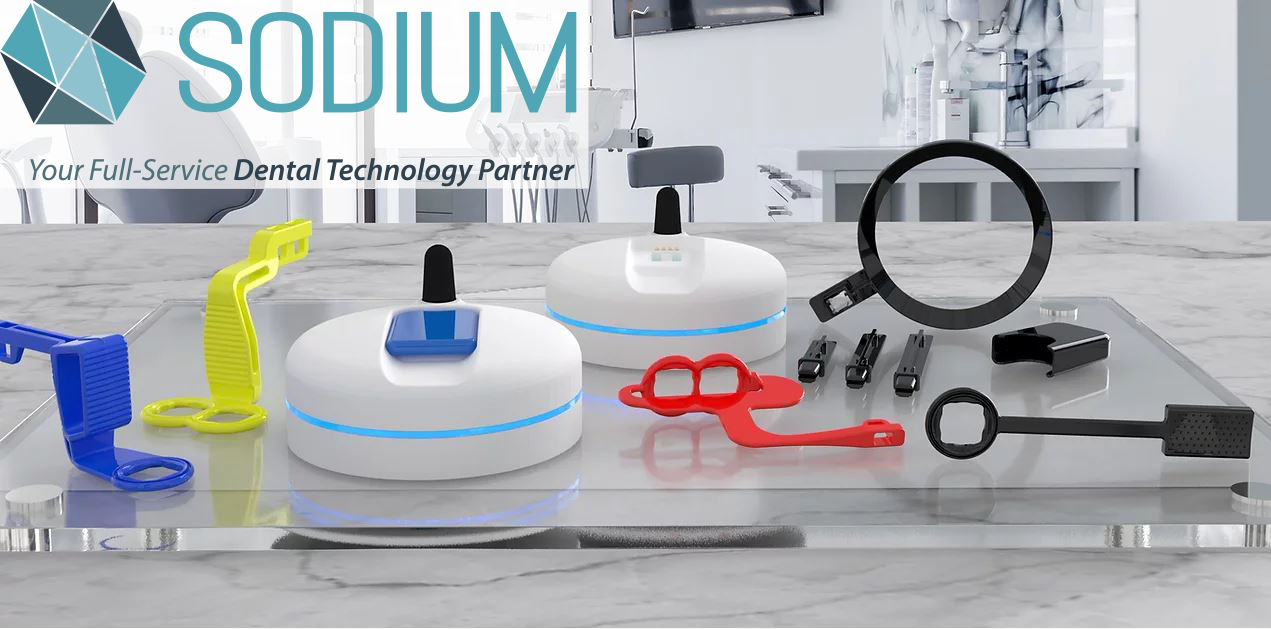

DC-Air Combo Kit
-
(1) DC-Air™ Wireless Intraoral X-Ray Sensor
-
(1) Docking Station
-
(1) USB-C to USB-A Docking Station Connectors
-
(1) Complete holder set
-
Unlimited PC installations
-
Two-year warranty on sensor and docking station with protection against accidental damage and loss/theft.
DC-Air Sensor Only
-
(1) DC-Air™ Wireless Intraoral X-Ray Sensor
-
(1) Complete Holder Set
-
Unlimited PC installations
-
Two-year warranty on sensor and docking station with protection against accidental damage and loss/theft.

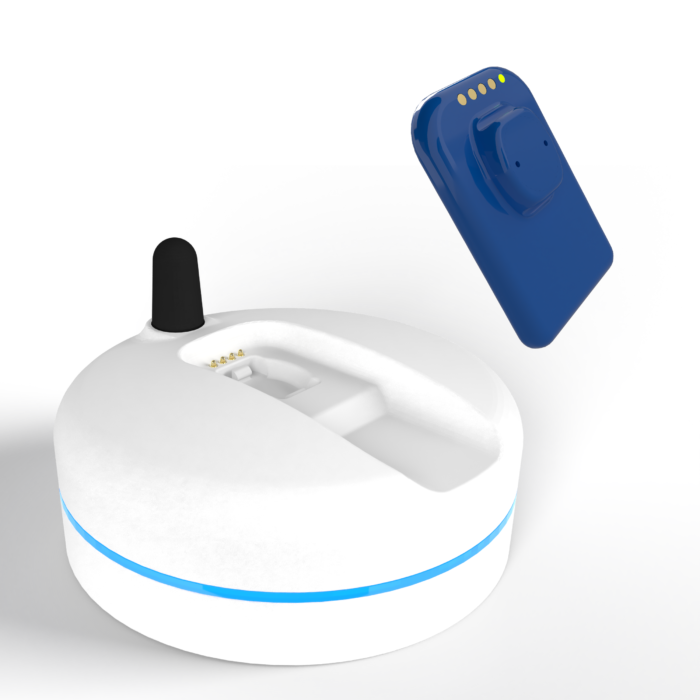

DC-Air Docking Station
Sensor Specifications
Detector Single Crystal Direct Conversion Silicon / CMOS
Exposure Parameters 0.05-0.50s, 60-70kV
Active Area 35.1mm x 24.7mm
Number of Pixels1,249,920
MTF >70% @ 5lp/mm, >40% @ 10lp/mm
Sensor Mode of Operation Global Shutter
Triggering Automatic on X-ray Start
Images per Charge Cycle 150+
Sensor Battery Type Lithium-Ion
Sensor Battery Capacity 19mAH
Top Features:
Crystal-Clear Image Quality
Unbeatable Patient Comfort
The Convenience of True Wireless
DC-Air is Built to Last
