Clio Sensor- Direct Integration into Dexis,Eaglesoft and VixWin

Description

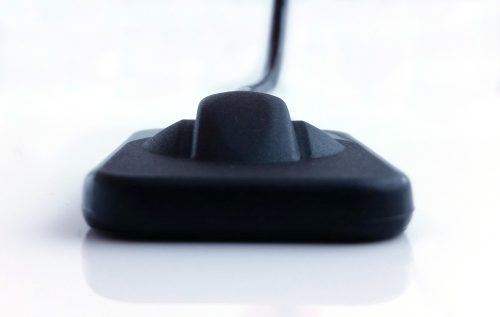

Clio Sensor

The Clio sensor has a direct integration into Dexis, Eaglesoft, and VixWin.  No 3rd party bridge requirements needed.

The Clio sensor comes in a size 1 & size 2

• All new Direct Integration Technology
• Thin sensor hardware with rounded corners for maximum comfort
• Direct USB cable with no docking station
• Fiber optic plate sensors for low-noise ratio
• Largest active area for maximum coverage
• Fully waterproof sensor head with sealed cable and housing design
• USB connector: USB 2.0, USB 3.0
• Sensor Technology – Next Generation CMOS Fiber optic Sensors
• Maximum Gray Levels – 4096 (12-bit)
• 2 Year Warranty with optional Care Plans for accidental damage
• Installation free up to 3 computers, $15 per computer after that
• Comes In Size 1 and Size 2



Different Purchasing Options To Meet Your Office Needs

 Optional add-ons for 2 Year Manufacture Warranty

• Sensor Price- Size 1 $7,500  Size 2 $8500
• Remote Installation/Support- $60 per operatory
• Remote Training- $695
• Sensor Holders For Ring And Bar Assisted Imaging- $259
• Shipping 2 day express-$90
• 2 year Manufacturer Warranty- customer handles warranty service directly with manufacturer

Technical Specifications:

                                                 Size 1                              Size 2

External Dimensions	24.35 x 36.73 mm	30.49 x 42.80 mm
Active Area	19.95 x 30.02 mm	25.99 x 36.02 mm
Sensor Plate Thickness	5.41 mm	5.41 mm
Sensor Cable Length	3 meters	3 meters
Image Resolution	26.3 lp/mm theoretical 20lp/mm actual	26.3 lp/mm theoretical 20lp/mm actual
Image Size	1580 x 1050 pixels	1896 x 1368 pixels
Image Pixel Size	19 x 19 microns	19 x 19 microns

Warranty Info:
• 2 Year Manufacturers Warranty

Included With Purchase:

• 1 Sensor
• 2 Years Manufacturers Warranty
• 50 Sensor Barrier Shields
• 5 pc RINN Kit
• USB flash drive

Not Included With Purchase But Recommended With Purchase:

• Professional Sensor Installation
• Gold Sensor Care Plan
• Platinum Sensor Care Plan

Care Plans for Accidental Damage Warranty Coverage

Platinum Plan

• Telephone Tech Support
• Real Time Remote Support
• Driver Updates
• Accidental Damage No-charge Repair
• Accidental Damage No-charge Replacement
• $1,500 annual or $125 monthly
• Per sensor and per year plan

Gold Plan

• Telephone Tech Support
• Real Time Remote Support
• Driver Updates
• Accidental Damage No- Charge Repair
• Accidental Damage Discounted Replacement
• $996 annual or $83 monthly
• Per sensor and per year plan

Clio Payment Plan Options

Call our office at 800.821.8962 to ask about our up to 3 year payment plan options.



Return policy: Due to the driver software provided with this sensor, this product is not eligible to be returned.
