Description

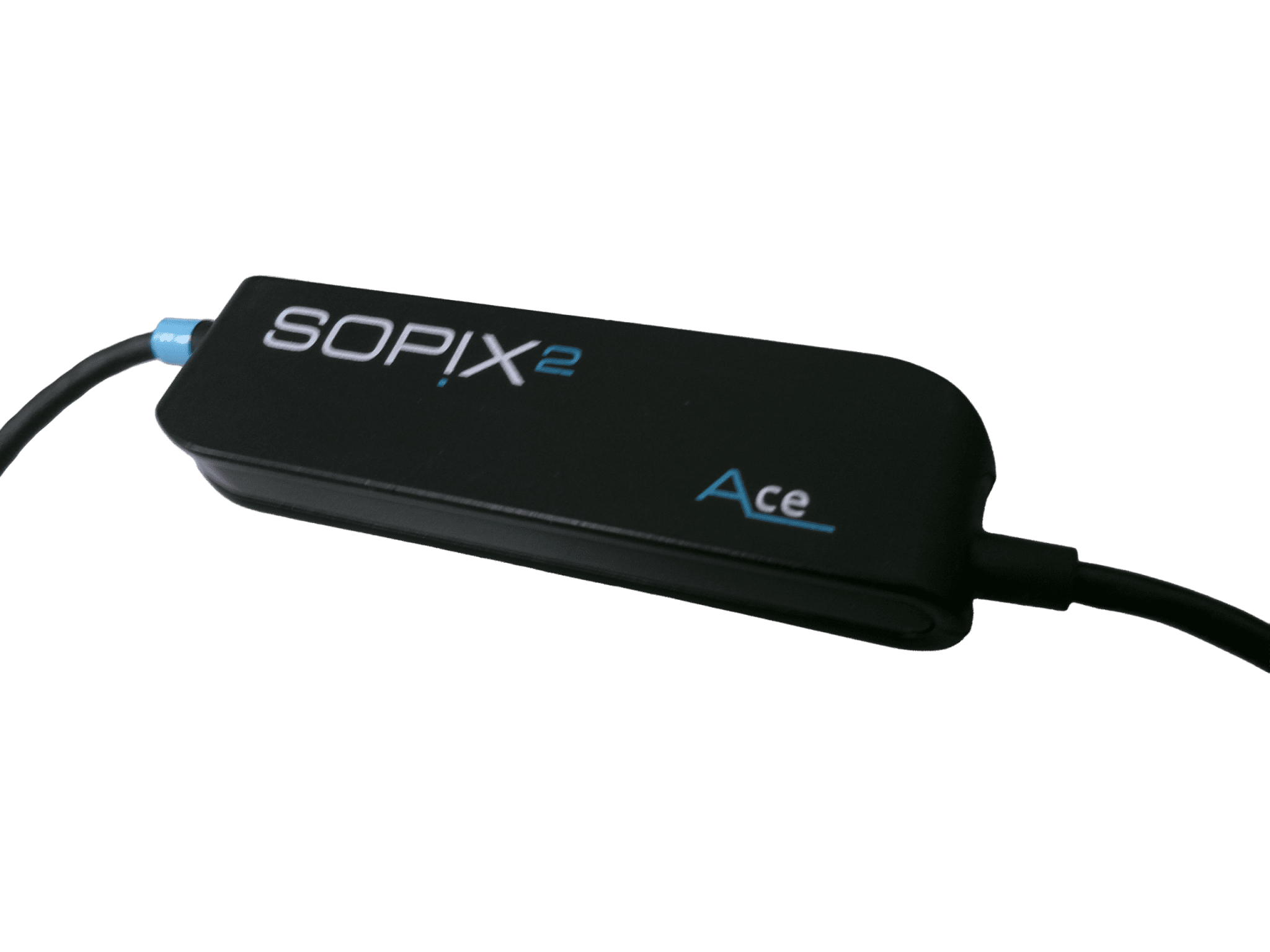

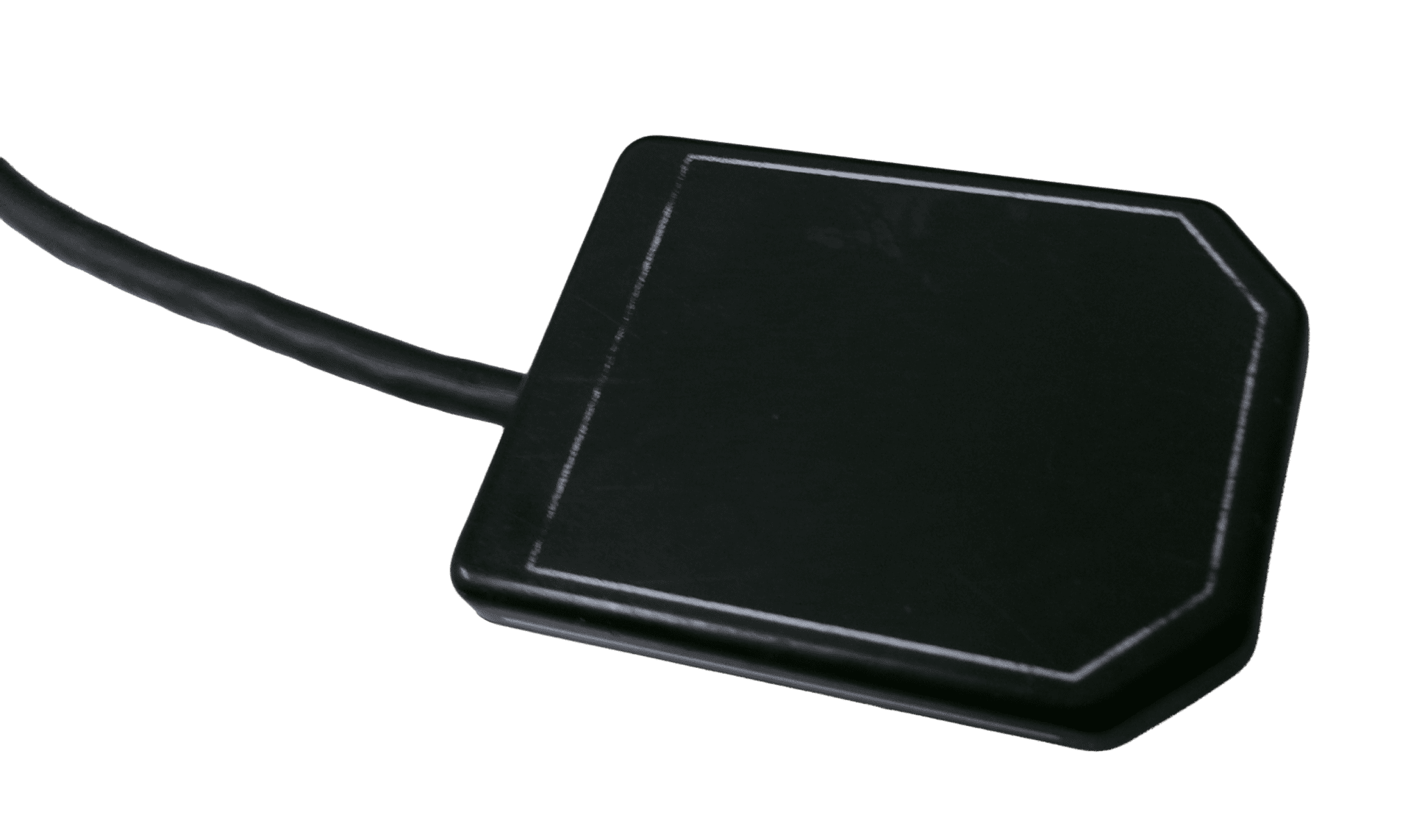

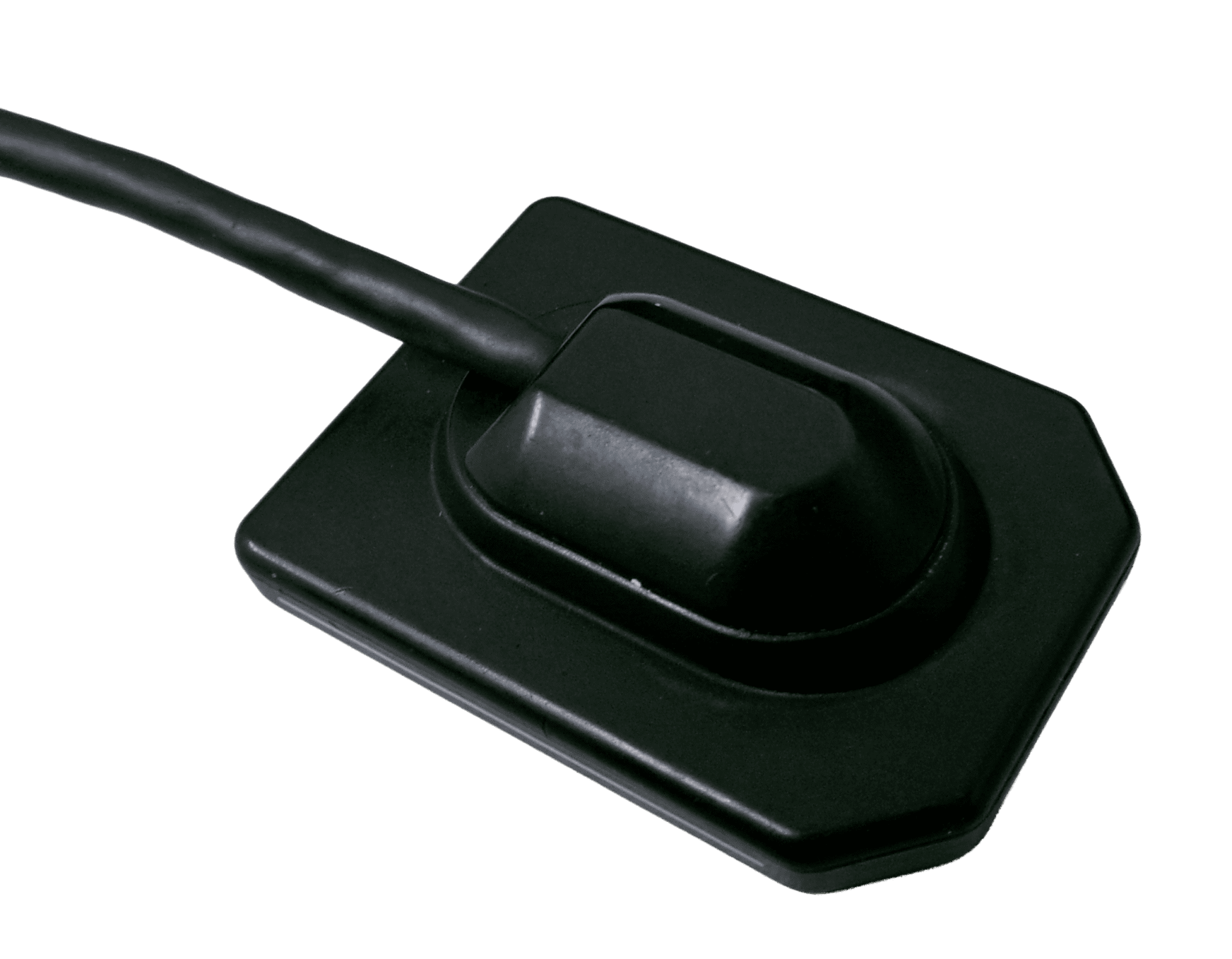

Pre-Owned Acteon SOPIX² ACE Intraoral X-Ray Sensor Size 2

Warranty 3 Months

Your coverage: Because these did not come through the authorized dealer channel, the original manufacturer warranty does not apply. Instead, every unit is backed by Sodium Dental’s 3-month warranty against functional defects and equipment failure

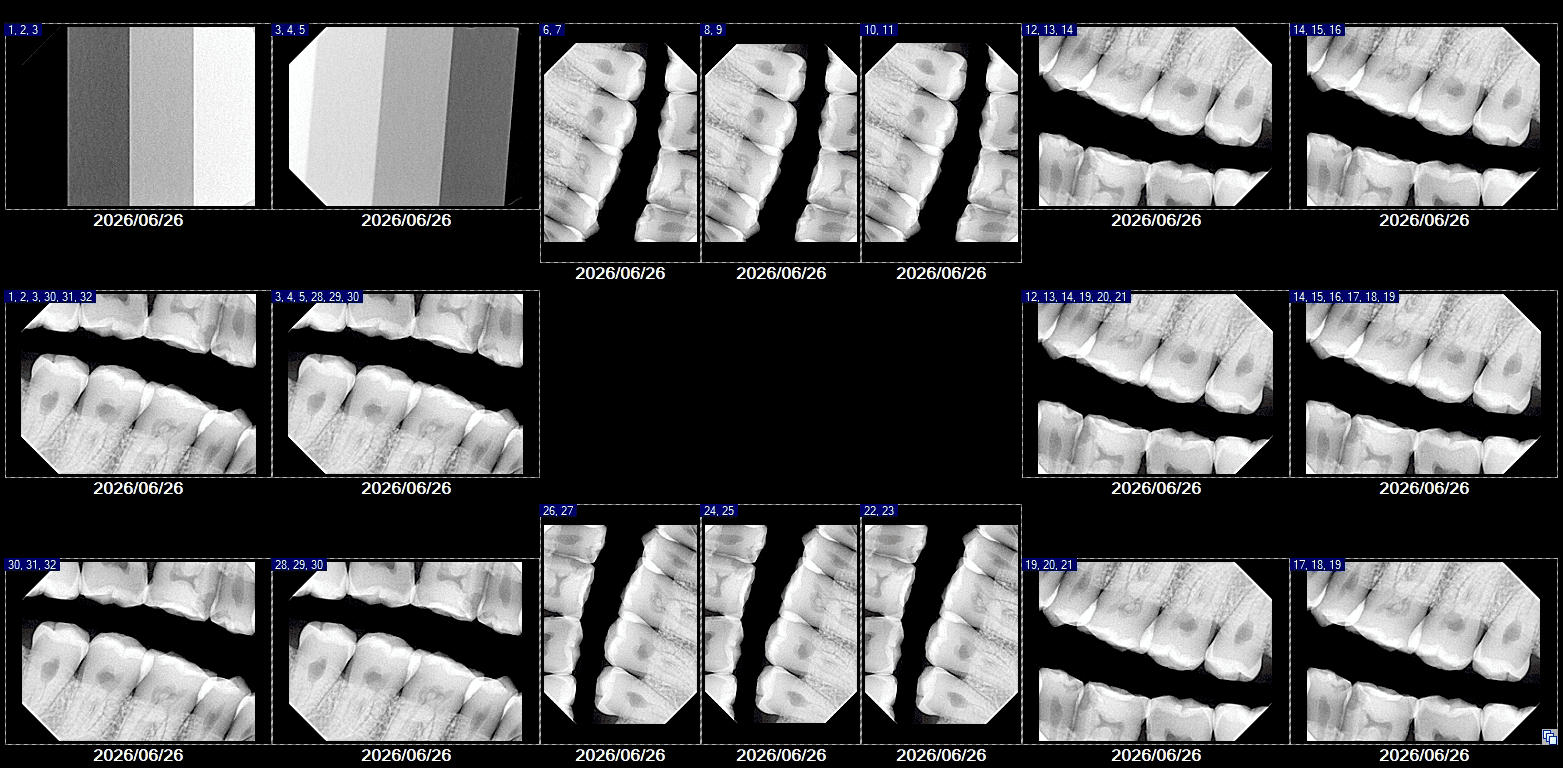

The SOPIX² is Acteon’s fiber-optic-based CMOS intraoral sensor, built around the company’s patented ACE technology (Automatic Control of Exposure). ACE analyzes incoming radiation in real time and freezes image acquisition the moment enough X-ray has been received, protecting every capture from overexposure and cutting down on retakes. The result is sharp, high-contrast radiographs with excellent differentiation of dental tissue.

Why dentists choose the SOPIX² ACE

  • Patented ACE exposure control — real-time dose monitoring prevents overexposed images, so the first shot is the right shot.
  • Fiber-optic CMOS imaging — scintillator, optical microfibers, and a high-resolution CMOS chip deliver crisp, well-defined images for accurate diagnosis.
  • Patient comfort — rounded edges and corners for easier intraoral placement, with white side stripes to help with correct positioning.
  • Open, flexible system — TWAIN-compatible and designed to integrate with most major dental imaging software; ships with Acteon’s Sopro Imaging.
  • Built-in diagnostics — oscilloscope mode to check your X-ray generator and a USB voltage test mode to verify your computer’s port output.
  • Clinically versatile — suited for periapical, bitewing, endodontics, periodontics, pediatric, and implant imaging.

Technical specifications

Manufacturer Acteon (SOPRO / Acteon Group)
Sensor technology Fiber-optic CMOS + CSI scintillator
Theoretical resolution 25 lp/mm
Real resolution > 18 lp/mm
Pixel size 20 µm × 20 µm
Size 1 active surface 20 × 30 mm (600 mm²) — approx. 1.5 megapixels
Size 2 active surface 26 × 34 mm (884 mm²) — approx. 2.21 megapixels
Connection Direct USB 2.0 (≈3.7 m cable, extendable with the supplied booster)
Imaging software Sopro Imaging included; TWAIN-compatible / open system

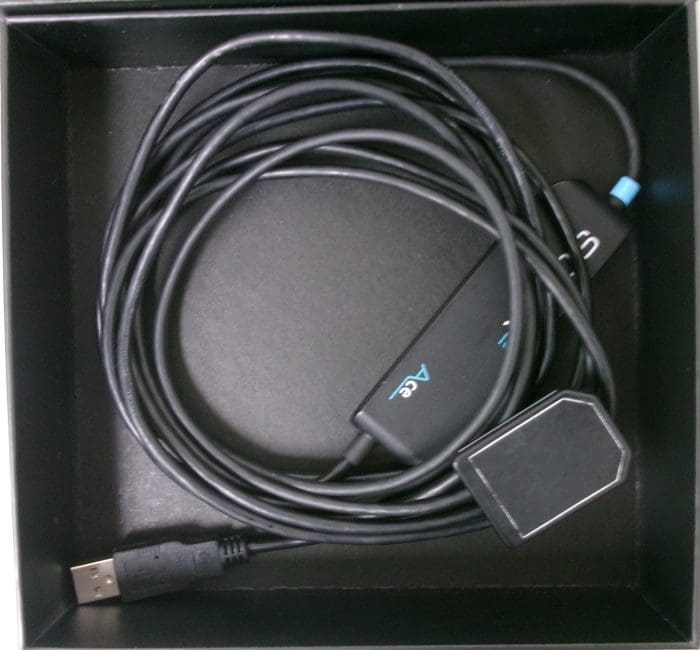

Condition New In Box (NOS) — unused, original packaging

Software setup & integration

The SOPIX² is an open system that works with most major imaging platforms. If you’d like it running inside the imaging software you already use, our team can help with installation, driver setup, and integration — just reach out after your order. Need PC requirements checked first? Call us at 1-800-821-8962.

Tube head and exposure settings affect the contrast, brightness, and clarity of your images; Sodium Dental is not responsible for image variations caused by your X-ray source. Each sensor is individually serial-tracked. Returns are subject to a 15% restocking fee with no refund of shipping. ACE exposure-limiting performance is maximized when paired with an Acteon X-Mind Unity generator.
